Features

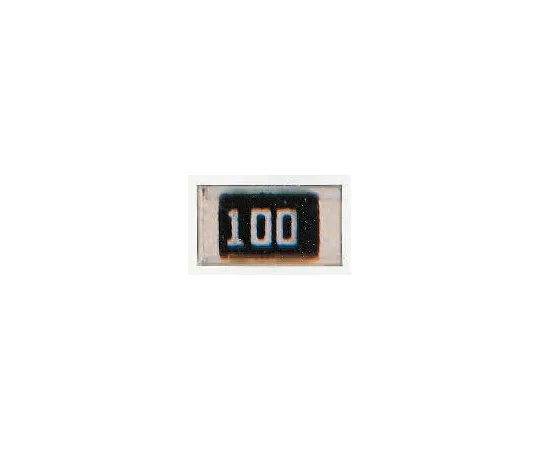

• TE Connectivity CRG1206 SMD Resistor
• The TE Connectivity CRG1206 series thick film resistor has high power for its size and is ideal for industrial and general applications. The short lead structure and low capacitance make the CRG1206 series resistors ideal for most applications, including high frequency operation.
• Features and Advantages: 1 Ω→10 MΩ tolerance of 1% and 5%. Also includes 0Ω links.
• 7 Package Sizes Terminal Finish: Brushed Tin Moisture Resistance Level: Level 2
• Structure
• Precious metal *** printed on ceramic base and fired. Resistance elements are screen printed with additional protective layers. The resistor is laser-trimmed to fit the tolerance. A given tile is divided into strips, *** plates are fired, and each strip is divided into individual components. The final termination is done by electroplating.
• MSL (Moisture Resistance Level) The Moisture Resistance Level is a precautionary measure for the handling and packaging of semiconductors and passive components.
• Moisture resistance level: Level 2 (1 year; 1206 pack size
• The size of this resistor is represented by the number 1206 (length 30/60 and width). It is usually in inches. Package size is in inches, but dimensions are in mm.
