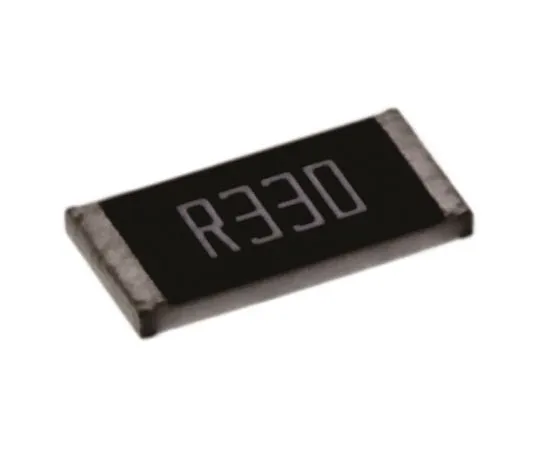

63-4734-87 TE Connectivity RL73 Series Thick Film Current Sensing Surface Mount Fixed Resistor 2512 Case 330mΩ ±5% 1W RL73K3AR33J
model:
63-4734-87
brand:
TE Connectivity
Product Description
Product Model: 63-4734-87Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4734-87
Product Brand: TE Connectivity
Features
- RL73 Series SMD. The TE Connectivity RL73 Series is a low ohmic shunt resistor that acts as a current sensor. Designed with a special metal glaze resistive element, it has a nickel barrier layer beneath the solder to prolong terminal life. Applications for the RL73 series include: Audio; Communications; Automotive; Low voltage power supplies; Power management. Power ratings of up to 1W at 70°C Resistance values down to 100mΩ Ideal for current detection Sizes from 0805 to 2512
Spec
- Quantity：1bag(10pieces)
- Resistance : 330mΩ
- Package/Case : 2512
- Tolerance : ±5%
- Power Rating : 1W
- Temperature Coefficient : ±200ppm/°C
- Technology : Thick Film
- Dimensions : 6.3 x 0.6mm
- Length : 6.3mm
- Depth : 3.1mm
- Height : 0.6mm
- Series : RL73
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Case Style : Moulded
- CODE No.:223-1048
