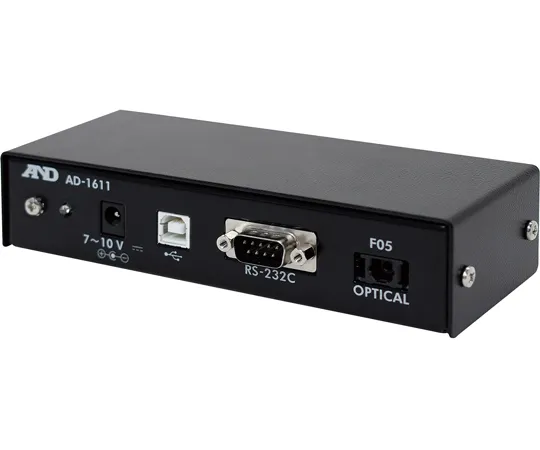

65-5713-55 Optical communication adapter for electronic balance EK-AEP series AD-1611
Product Description
Product Model: 65-5713-55Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 65-5713-55
Product Brand: A&D
Features
- This unidirectional communication unit receives the output data (optical signal) from the scale and transmits it (electrical signal) to a PC or external connection device using USB or RS-232C.
- You cannot s*** commands to the scale from a PC or an external connection device.
- Optical cable and RS-232C cable are sold separately.
- USB and RS-232C can be connected simultaneously.
Spec
- Connected models: EK-AEP
- Power: AC adapter (included) or power from USB
- Optical cables (sold separately): AX-KS5456-010 (10 m), AX-KS5456-030 (30 m), AX-KS5456-060 (60 m), or commercially available optical cables (H-PCF [plastic clad quartz core fiber: 200/230 μm] cable with F05 connector (JIS C5974 F05 type) lever lock type
- Receive connector: F05 (JIS C5974 F05 type)
- S*** connector: RS-232C (D-Sub9P)/USB TypeB
- Optical transmission distance: up to 60 m (not ext***able)
- *It is not explosion-proof or waterproof.
