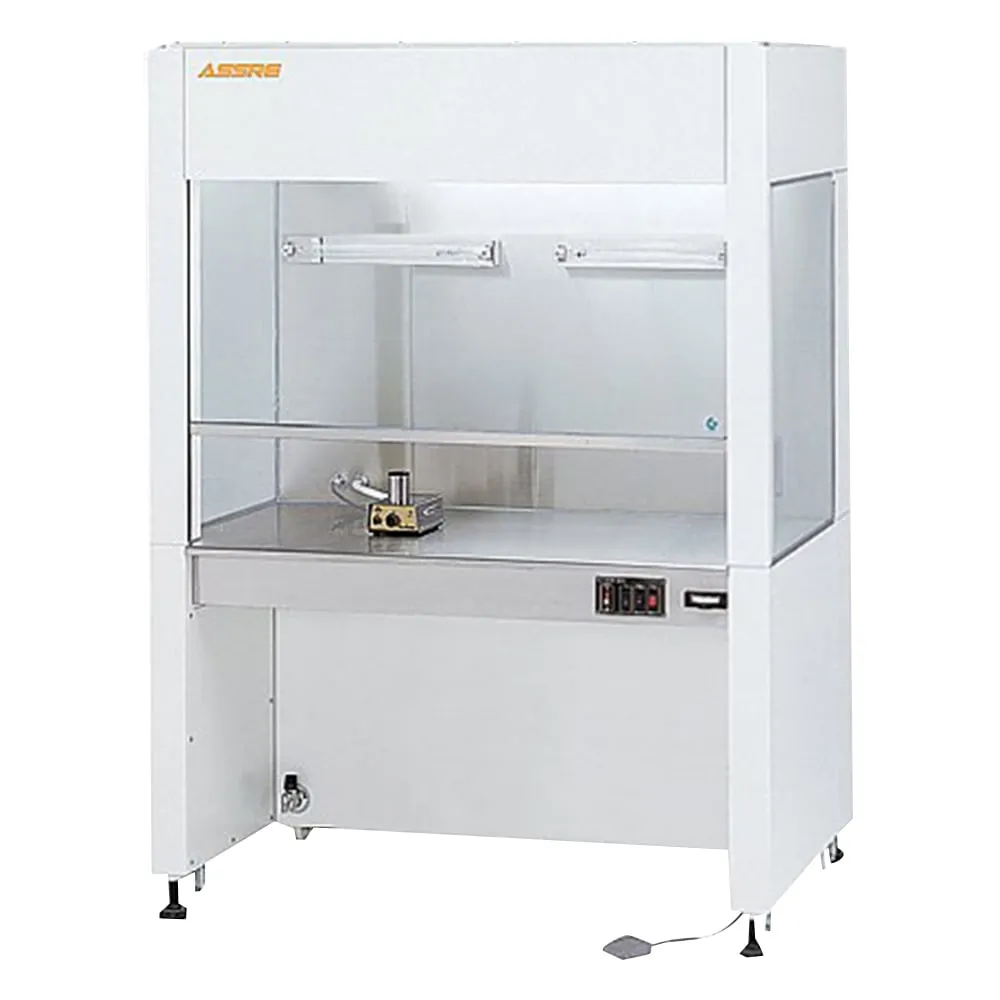

3-1145-02 Bio Clean Bench ICB-1300J
Product Description
Product Model: 3-1145-02Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-1145-02
Product Brand: AS ONE Corporation
Features
- Since it is a forced circulation exhaust type (weak negative pressure type) clean bench, it prevents the direct outflow of contaminated air including particles and microorganisms generated in the work area into the room.
- It comes with PAO nozzle which is convenient for HEPA filter performance test.
Spec
- Model number: ICB-1300J
- Exterior: Steel plate, Coating finish with melamine baking
- Work planes: Stainless steel (SUS304) HL finish
- Front door: 5mm-thick Transparent Strengthened glass, with Automatic balancing stop mechanism
- Cleanliness: ISO 5 (class 100)
- Dust collection effect: At 0.3μm particles 99.99% or more
- Service outlet: 100V 5A x 1
- Accessories: Gas burner (foot switch included), PAO nozzle *Please specify Type of gas at the time of order.
- Front door upon full opening height: Approximately 2010mm
- Front door maximum open dimensions: Approximately 560mm
- Main filter: Thin HEPA filter:
- Exhaust filter: HEPA filter
- The number of main filter: 2 sheets
- The number of Exhaust filter: 3 sheets
- Blow-off wind speed: 0.45m/s
- Air volume: Approximately 30m3/min
- Power supply: 100VAC 1φ 50/60Hz
- Power consumption: Approximately 600VA
- Lighting: 40W x 2
- Sterilization light: 15W x 2 volumes
- Weight: 230kg
- Outer dimensions: 1300 x 810 x 1845mm
- Work area dimensions: 1270 x 485 x 720mm
- Weak negative pressure type
- *In case you handle fungi with pathogenicity or something that contains them, please *** cabinet for biohazard measures.
