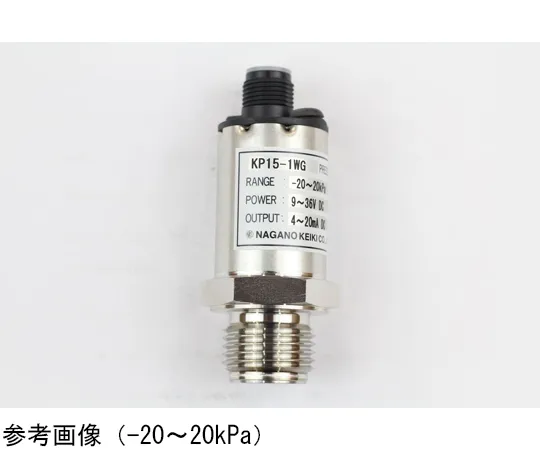

65-4329-97 Pressure transmitter analog output 4~20 mA DC 100 kPa KP15-1WG
Product Description
Product Model: 65-4329-97Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 65-4329-97
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- The KP15 is a diaphragm type transmitter that ***s SUS316L material for the diaphragm. Beca*** it is stainless welded, it can be ***d for a wide range of media, and is ***ful in various industries where low pressure and absolute pressure measurement are required.
Spec
- Shape (Mounting): Connector Type M12 Connector (4 Pole) External Adjustment Type Cable Sold Separately
- Connection: G1/2A (tip diaphragm)
- Material/Sealing Method: Diaphragm: SUS316L
- Pressure Range: kPa_0~100
- Accuracy: ±0.3%F.S.
- Power: 9~36 V DC
- Output: 4~20 mA DC (2 wire)
- Treatment: No oil, no water
