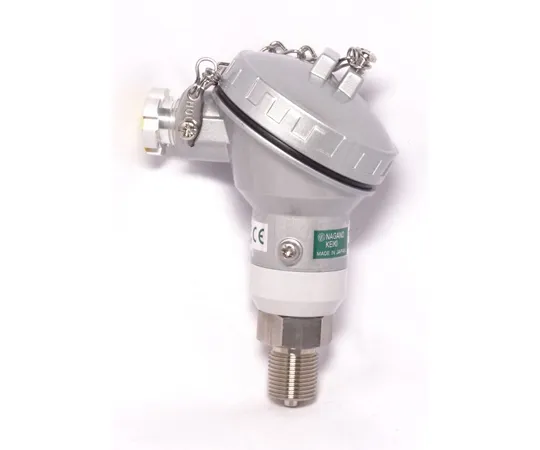

65-4328-61 Pressure Transmitter Analog Output 4~20 mA DC 0.1 MPa KH15-J33
Product Description
Product Model: 65-4328-61Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 65-4328-61
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- This device is a pressure transmitter that converts pressure into an electric signal of 4~20 mA DC and transmits it through a detection unit using a semiconductor strain gauge and a built-in electronic circuit. Improves electrical and mechanical reliability and comes standard with zero span adjustment.
Spec
- Shape (Mounting): Terminal Box Type (Small) Zero Tone Span Adjustable
- Connections: G3/8B
- Material/Seal Method: O-Ring Type (SUS630 (17-4 PH), NBR, SUS316
- Pressure Range: MPa_0~0.1
- Accuracy: ±1.0%F.S.
- Power: 24 VDC ±10%
- Output: 4~20 mA DC (2 wire)
- Treatment: Pear
