laboratoryinstruments
64-4282-29 Micropore (Pore Size: 0.20μm, 250mm) 2BS-1SE A0030200
model:
64-4282-29
category:
laboratoryinstruments
Product Description
Product Model: 64-4282-29 Features The Micropore BS typ […]
Contact Us
Product Details
Product Model: 64-4282-29
Features

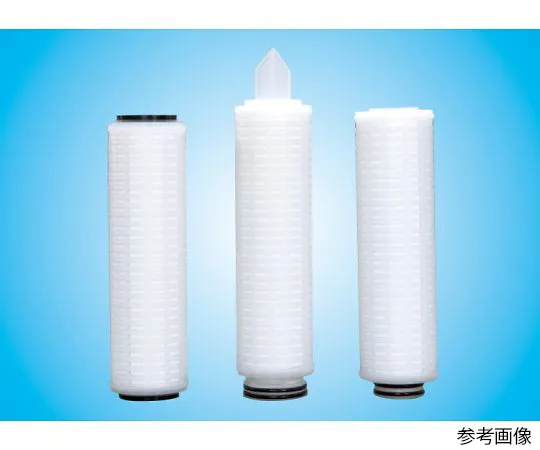

- The Micropore BS type is a high-flow particulate filter.
- High flow rate is achieved by using polysulfone film.
- The 3-type seal shape is compatible with other companies' housings.
- Ideal for high-grade water treatment systems, it is a heat-welded seal system that does not *** any adhesive.
- All products have been tested for integrity (non-destructive testing).
- The removal rate of the particulate removal test using Chemical's uniform latex (0.109 μm, 0.236 μm, 0.481 μm) is 99.999~99.9999%.
- [Application] Final filter for ultra-pure water line, final filter for electronic industrial water, laboratory, for high-grade pure water ***d in laboratory
Spec
- Material: PSF support material (Filter media), PP(Core, End cap, Guard), EDPM(standard)(Gasket, O-ring)
- Heat Registance: Shape1 /90℃(S), 70℃(D/T) Shape2,3/ 90℃
- Vs differential pressure:Positive pressure/ 0.54MPa(25℃), 0.20MPa(90℃) Reversal pressure/ 0.34MPa(25℃), 0.15MPa(90℃)
- Selection Code: 2BS-1SE
- Hole diameter code(absolute diameter): 1/0.10μm, 2/0.20μm, 4/0.45μm
- Shape code: 1/Gaskets on both ***s, 2/O-ring 226(with fin), 3／O-ring 222
- Length code: S/250mm(Shape1), 313mm(Shape2), 257mm(Shape3) D/504mm(Shape1), 565mm(Shape2), 509mm(Shape3) T/756mm(Shape1), 817mm(Shape2), 761mm(Shape3)
