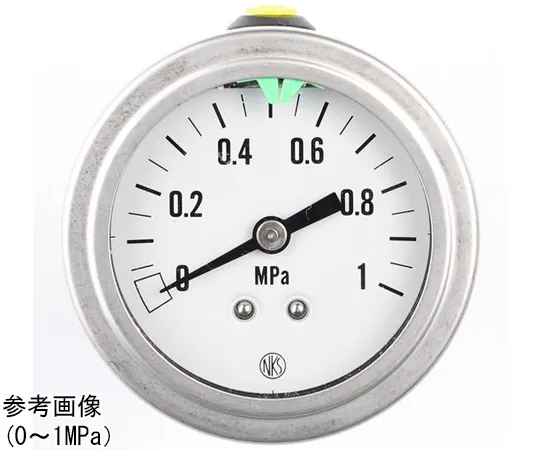

65-4326-83 Small Pressure Gauge with Glycerin (50Φ) 0.25 MPa GV97-671
Product Description
Product Model: 65-4326-83Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 65-4326-83
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- This instrument is a pressure gauge dedicated to vibration that controls the vibration of the moving part by immersing the internal mechanism in the filling fluid, and also prevents the wear of the internal link mechanism to facilitate maintenance.
Spec
- Size (mm): Φ50
- Shape (Mounting): Embedded D Frame (Center Back Strand)
- Connection: R1/4
- Material: Brass
- Pressure Range: MPa_0~0.25
- Accuracy: ±3.0%F.S.
- Treatment: Pear
