Electronic/Electrical Parts and Controll Equipments

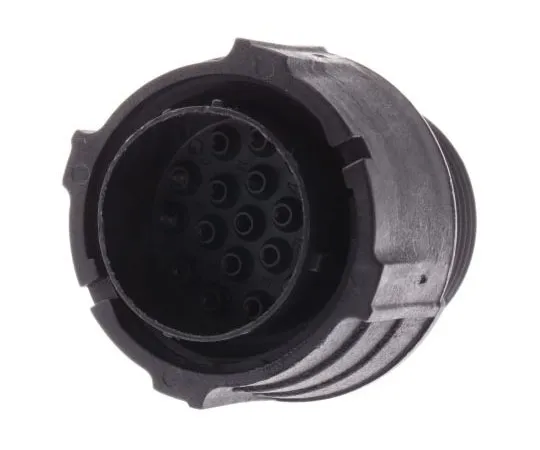

63-4733-42 Souriau Clipper Series Cable Mount Housing, 18 contacts Plug CL1P3101
Product Description
Product Model: 63-4733-42Product Brand: Souriau Feature […]
Contact Us
Product Details
Product Model: 63-4733-42
Product Brand: Souriau
Features
- Cable sockets only mate with panel plugs or in-line coupler shells. Cable plugs only mate with panel sockets. Cable Shell. 180° screw coupling cable mount sockets. The unique contact retention system facilitates field maintenance and repair, enabling contacts to be loaded and unloaded by simply unlocking the contact retention plate. The assembled connector accepts a range of backshells. Contacts available seperately, typically 220-2810 or 175-3963.
Spec
- Quantity：1piece
- Number of Contacts : 18
- Mounting Type : Cable Mount
- Termination Method : Crimp
- Shell Size : 3
- Current Rating : 13A
- IP Rating : IP67
- Contact G***er : Male
- Mating Type : Threaded
- Body Orientation : Straight
- Series : Clipper
- Housing Material : Thermoplastic
- CODE No.:220-2696
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7769-37 Alps Alpine 24 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed), Through Hole EC12E24204A8
model: 63-7769-37
brand: Alps Alpine
Electronic/Electrical Parts and Controll Equipments

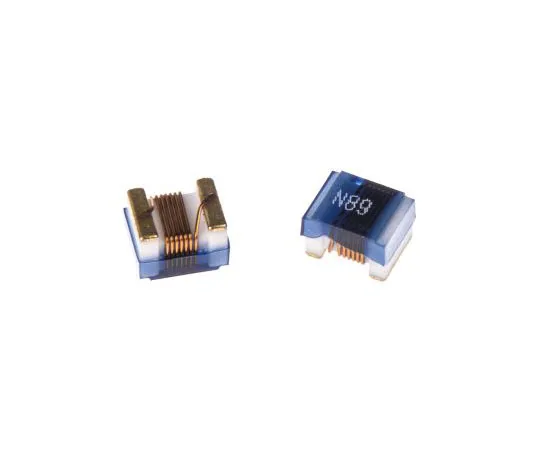

63-8058-92 Wurth WE-KI Series Type 1008A Shielded Wire-wound SMD Inductor with a Ceramic Core, 68 nH Wire-Wound 1A Idc Q:60 744762168A
