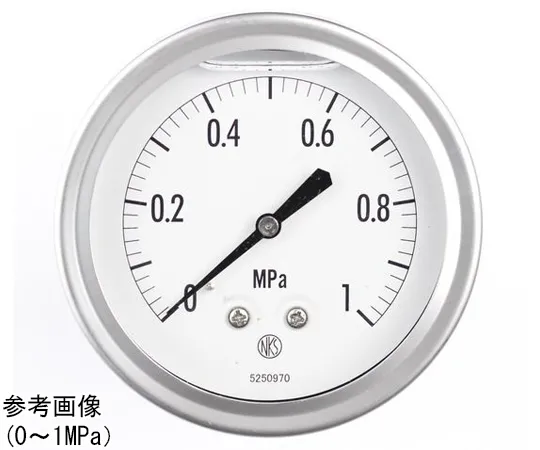

65-4322-64-20 Pressure Gauge with Glycerin (100Φ) with 0.6 MPa with Inspection Certificate GV47-143
Product Description
Product Model: 65-4322-64-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4322-64-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- This instrument is a pressure gauge in which the internal mechanism is immersed in a filling liquid. Glycerin filled in the stainless steel case suppresses vibration of the moving part and prevents wear of the link mechanism. A highly durable pressure gauge suitable for use under vibration that shortens the life of the gauge.
Spec
- Size (mm): Φ100
- Shape (Mounting): Embedded D Frame (Mounting Bracket)
- Connections: G1/2B
- Material: SUS
- Pressure Range: MPa_0~0.6
- Accuracy: ±1.5%F.S.
- Treatment: Pear
