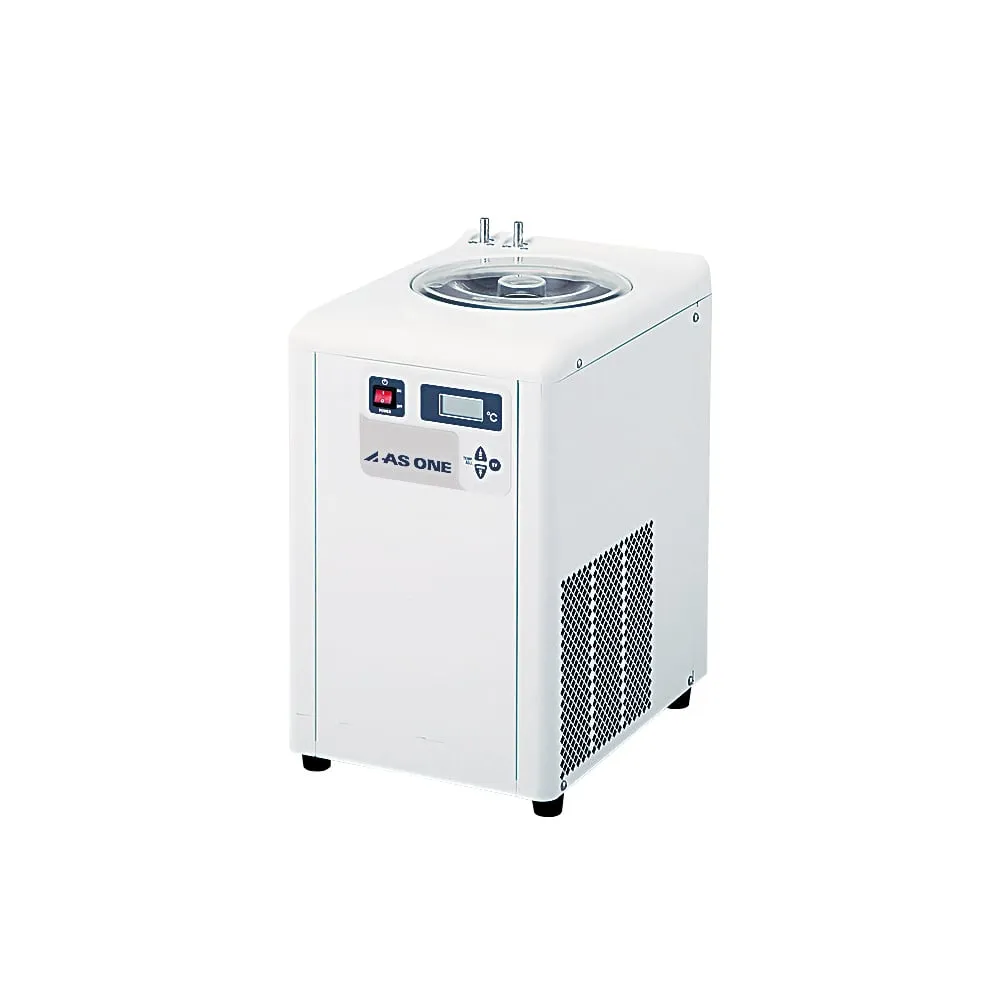

1-1585-01-22 Low Temperature Circulation Water Bath 295 x 395 x 480 mm with Pre-shipment Inspection Document LTC-S300C
Product Description
Product Model: 1-1585-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-1585-01-22
Product Brand: AS ONE Corporation
Features
- Can also be ***d as a low temperature constant temperature water bath (open tank).
- Tabletop type small low temperature circulation water tank.
- Built-in circulation pump with a maximum pump head of 4.3 m and a maximum flow rate of 9.2 L/min.
- It supplies stable cooling water to rotary evaporators, Soxhlet fat extractors, distillation and reaction equipment, etc.
- Space-saving type that does not require installation.
Spec
- External circulation system: Closed system countercirculation system
- Type of liquid ***d: water, ethylene glycol aqueous solution, ethanol aqueous solution
- Maximum Pump Head: 4.3/5.8 m (at 50/60Hz, Flow 0 L/min)
- Maximum Flow Rate: 9.2/10.2 L/min (50/60Hz, At No Load)
- Freezer/Refrigerant: Air-Cooled Sealed Type 100 W/R134a
- Refrigerating machine control system: ON/OFF control
- Water Tank Dimensions, Capacity, Material: φ210 x 210 mm, Approximately 5 L, SUS304
- Nozzle Diameter: Outer Diameter φ10 mm
- Safety Functions: Leakage Breaker (with Overcurrent), Refrigerator Overload Relay, Circulation Pump Impedance Protector, Refrigerator Protection ON/OFF Timer, Excessive Temperature Rise Warning, Sensor Abnormality Warning
- Power: 100 VAC 50/60Hz 3.2/3.5 A
- External Dimensions: 295 x 395 x 480 mm
- Weight: Approx. 25 kg
- Accessories: Circulation Hose (φ9 mm x 2 m), Hose Band x 2, Outlet Adapter, Different Diameter Connector x 2, L-Type Connector x 2
- Temperature Control Range (°C): -5 - +20
- Cooling Capacity: 310 W at 20°C
- This product is compatible with the validation service (IQ/OQ). Please contact us.
- *The validation service is a service where installation qualification (IQ) and operation qualification (OQ) are performed at the customer's site and an inspection report is submitted.
