laboratoryinstruments

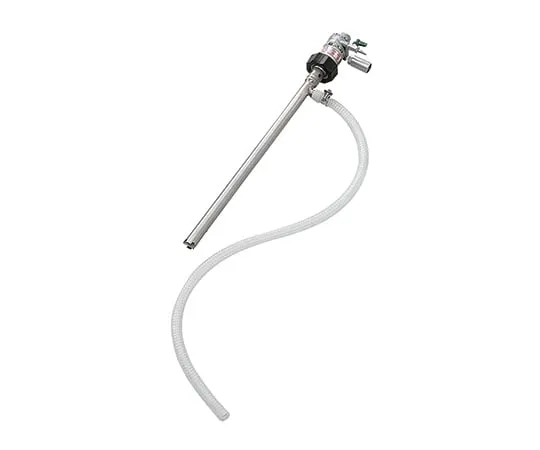

1-664-48 Handy Pump MHM-316MA
model:
1-664-48
category:
laboratoryinstruments
Product Description
Product Model: 1-664-48 Features 1-664-29 MHM-316M air […]
Contact Us
Product Details
Product Model: 1-664-48
Features
- 1-664-29 MHM-316M air motor drive.
- The wetted parts are made of SUS316 and PTFE, the discharge hose is made of PVC (soft vinyl chloride) or SUS304, and the hose of SUS304 is suitable for chemicals such as solvents.
- Can be ***d for union containers, pail cans, etc.
- * Suitable for subdividing and clearing chemicals in laboratories, medicine wareho***s, etc., and for transferring chemicals in metal factories, wastewater treatment plants, etc.
- * Extensive lineup. Easy to handle chemical transfer pump.
Spec
- Model number: MHM -316 MA
- Maximum flow rate (L/min): 30
- Flow rate/lifting height (L/min)/(m): 22/2
- Maximum lifting height (m): 5
- Main material: Stainless steel SUS316
- Hose material/Length (m): PVC/2
- Air motors and mini-types
- Working viscosity: up to 100 mPa*s (100cP)
- *When selecting the air motor (A), it is recomm***ed to *** the air 3-point set (Filter lubricator (oil mug) regulator).
- *Flow rate value is with freshwater and at room temperature.
- *It can also be ***d for special order with lower neck length. Please contact us.
