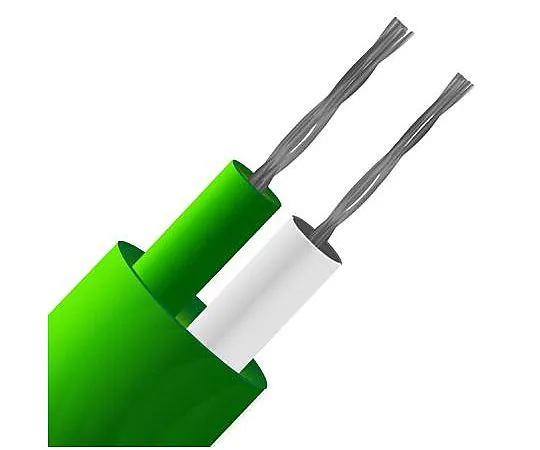

63-4733-09 Thermocouple Wire Type K, -10 → +105 °C 2 Core Unscreened PVC Sheath 25m 219-4551
Product Description
Product Model: 63-4733-09Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4733-09
Product Brand: RS PRO
Features
- BS4937 Part 30 1993 which conforms to IEC 584-3. PVC Insulated Compensating Cable. Features and Benefits. PVC insulated flat pair construction Conductors laid flat PVC insulated with overall PVC sheath All round general purpose cable, both waterproof and very flexible Thermocouple extension types for K, J, T ; N Compensating types VX (KCB) ; U (RCA) for types K ; R/S Thermocouples respectively Stranded conductors available, either 7/0.2mm or 13 /0.2mm Tolerance Class 2 Insulation rating -10 → 105 °C Colour code (cores ; jacket) to IEC-584-3
Spec
- Quantity：1roll(25m)
- Thermocouple Type : K
- Number of Cores : 2
- Length : 25m
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +105°C
- Screened/Unscreened : Unscreened
- Core Strands : 7/0.2 mm
- Insulation Material : PVC
- Cable Shape : Multicore
- Number of Strands : 7
- Size of Strands : 0.2 mm
- Standards Met : BS 1843, RoHS Compliant
- CODE No.:219-4551
