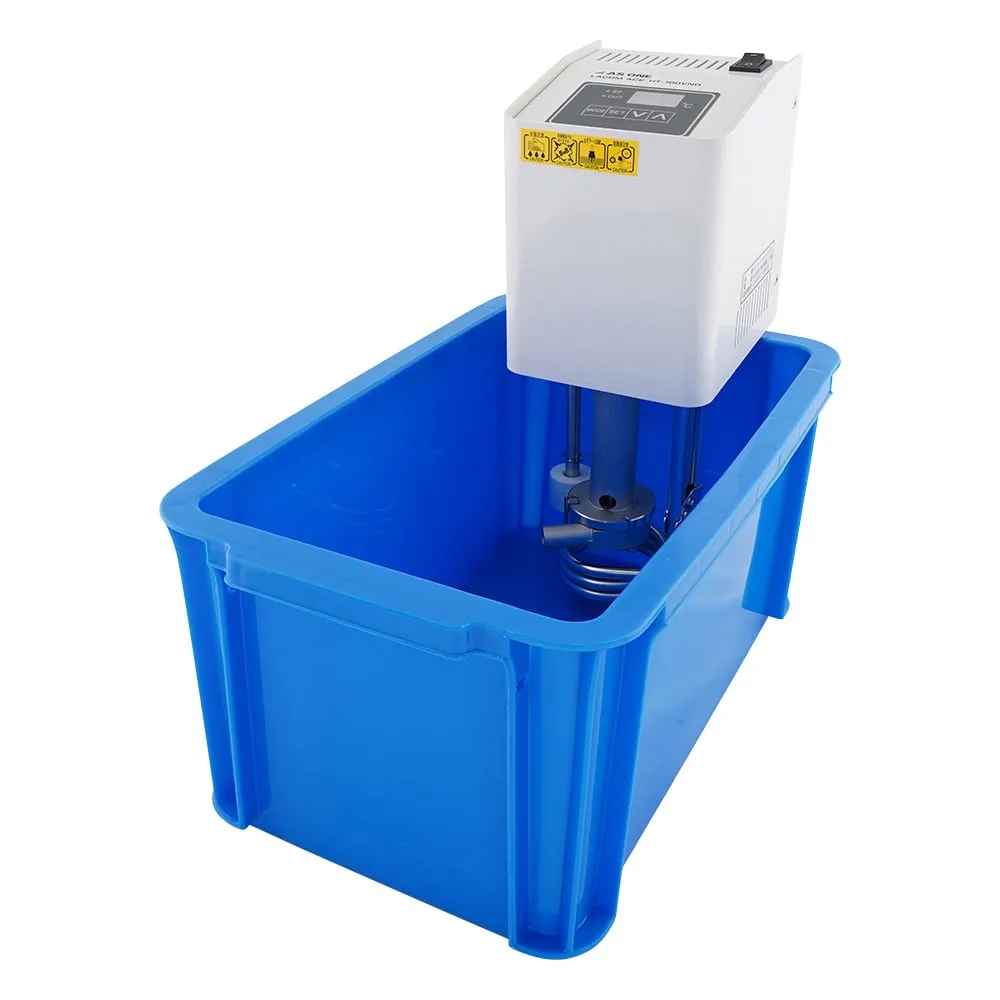

1-103-11-28 Lacombe Ace (with Digital Thermostat Flat Water Tank) with Pre-shipment Validation HT-100VND
Product Description
Product Model: 1-103-11-28Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 1-103-11-28
Product Brand: AS ONE Corporation
Features
- You can set the main body just by placing it in a corner of a flat shallow water tank.
- It has a float type fire prevention device.
- It can be ***d in conjunction with a transfer branch pipe to circulate constant water to an external sealed container.
- It can be ***d as a thermostatic water bath with high accuracy even when set in a plastic container or stainless steel vat.
- The flow rate can be adjusted and a water tank (outer dimension: 334 x 198 x 158 mm) is also included.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature point: 1 point of 37 degrees Celsius
- Digital Thermostat Flat, with Water Tank (Main Unit)
- Size (mm): 105 x 160 x 281
- Weight: 2.2 kg
- Temperature setting range: room temperature + 5 ~ 80 degrees C
- Temperature control accuracy: +/- 0.1 degrees C
- Temperature control system: Digital display and PID control
- Heater part size: 140 mm
- Heater capacity: 700 W
- Stirrer: Jet pump
- Safety device: With float type dry heat protector
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 1.8 m (3 P plug)
- Accessory: poly water tank
- Local validation services (IQ/OQ) are also available. Please contact us.
- *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
- *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
