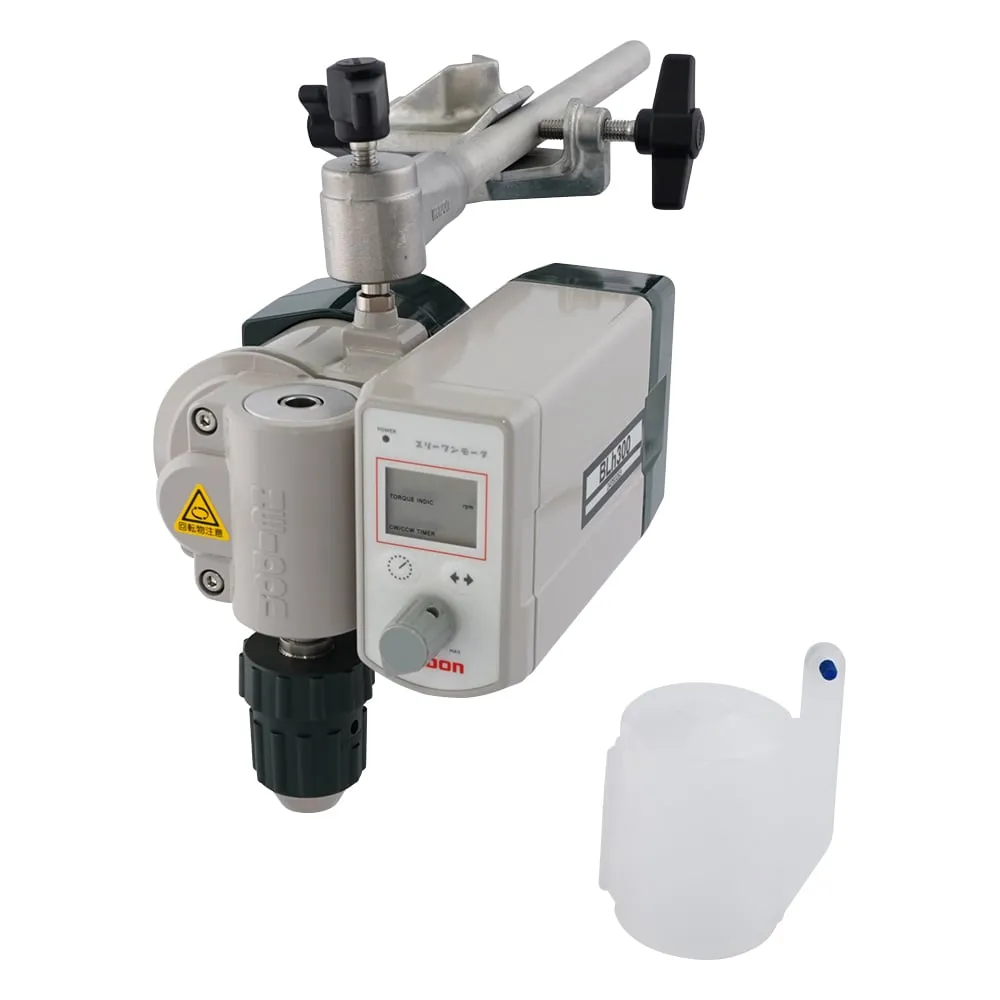

1-7123-01 THREE-ONE MOTOR High Power BLh300
Product Description
Product Model: 1-7123-01Product Brand: THREE-ONE MOTOR […]
Contact Us
Product Details
Product Model: 1-7123-01
Product Brand: THREE-ONE MOTOR
Features
- Maintains the set speed with high accuracy against viscosity changes during stirring.
- Brushless motor is ***d, so maintenance of the motor body is unnecessary.
- It does not emit noise that affects other aircraft and is designed to prevent malfunction even if it is received.
- With free joint hand tightening chuck.
Spec
- Model number: BLh300 high power
- Rotation speed: 5 - 300rpm
- Torque: 1.8N･m
- Motor: DC brushless motor, class B Insulation (130℃) 70W
- Rotation Control: Feedback control, forward/reverse switching (timer mode, manual)
- Forward and reverse rotation timer: Setting switchable to 5, 10, 20, 30, 45, and 60 seconds
- Panel display: Rotation speed digital 4 digits, overload display, torque indicator (1 scale 20%)
- Zipper: Collet type hand tightening zipper for φ8mm
- Safety device: Current limit circuit
- Thermal protector: Motor coil temperature 90℃ safety cover
- Power cord length: 2m (with 2 poles ground type plug)
- Power supply, power consumption: Single phase 100V, 50/60Hz common ***, 90VA
- Size: 125 x 190 x 209mm
- Weight: 2.8kg
- Accessories: Clamp holder (Type: 21 x 16) x 1 pc (attachable rod diameter φ21mm)
- Applies to: for high viscosity
- *Stand, shaft, stirring blade are sold separately.
