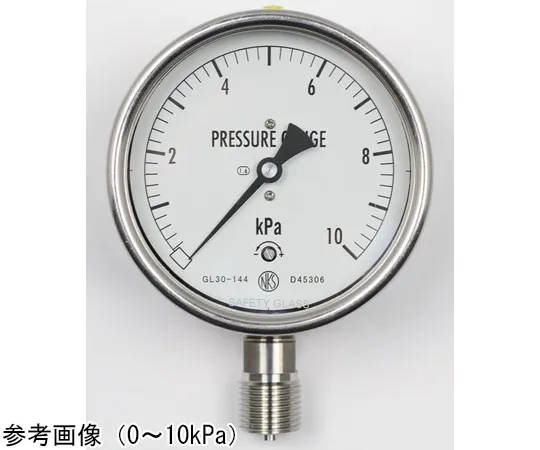

65-4319-11-20 Stainless Steel Case Microbarometer (100Φ) with 10 kPa Inspection Certificate GL30-144
Product Description
Product Model: 65-4319-11-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4319-11-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- Compliant to EN837-3
- Standard *** of safety glass
- Accuracy: ±1.6%F.S.
- Zero Adjustable from Front
- 7-digit number specified on the scale board
- If liquid enters the pressure element, performance will be affected. In such a case, *** air as a medium by air purging.
- When selecting a pressure gauge, select the pressure range so that the normal operating pressure is within 30~60% of the pressure range so that the performance can be fully demonstrated. Also, make sure that the material of the gas contact part is suitable for the gas to be measured.
Spec
- Size (mm): Φ100
- Shape (Mounting): Vertical A-Frame
- Connections: G1/2B
- Material: SUS
- Pressure Range: kPa_0~10
- Accuracy: ±1.6%F.S.
- Action: 0
