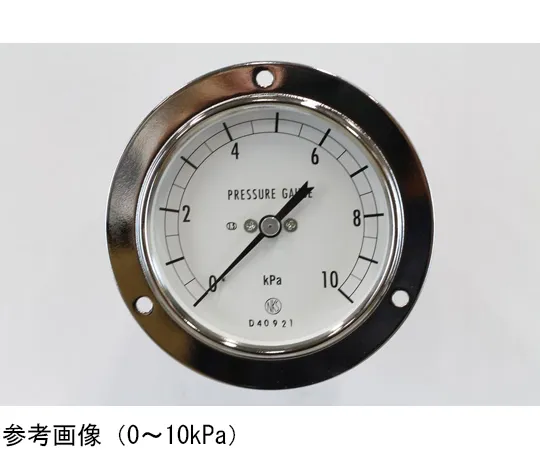

65-4317-83-20 Microbarometer (75Φ) with 10 kPa Inspection Certificate GL19-231
Product Description
Product Model: 65-4317-83-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4317-83-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- This pressure gauge is designed to measure low pressure of 50 kPa or less. It can be ***d not only to measure pressure directly but also to measure the volume and depth of liquid in the tank. However, if the measurement fluid enters the pressure element, the performance will be affected. In such a case, *** air as a medium by the air purge method.
Spec
- Size (mm): Φ75
- Shape (Mounting): Embedded D Frame (Mounting Hole)
- Connections: G3/8B
- Material: Brass
- Pressure Range: kPa_0~10
- Accuracy: ±1.5%F.S.
- Treatment: Pear
