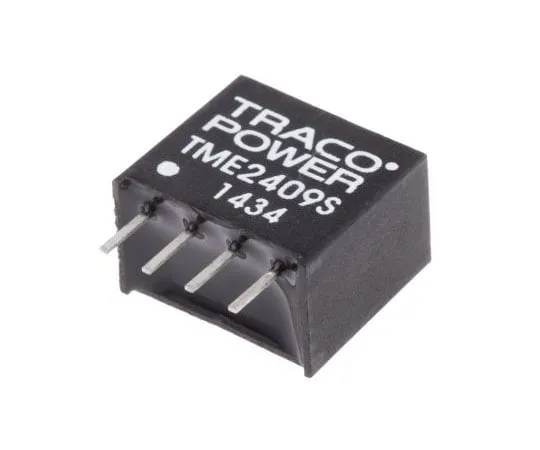

63-4732-54 TRACOPOWER TME 1W Isolated DC-DC Converter Through Hole, Voltage in 21.6 → 26.4 V dc, Voltage out 9V dc TME 2409S
Product Description
Product Model: 63-4732-54Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-4732-54
Product Brand: TRACOPOWER
Features
- Traco 1W SIP Single Output Unregulated Isolated DC-DC Converter - TME Series. The Traco Power TME series is a range of miniature isolated, 1 Watt, DC/DC converters in a SIP package. The full SMD design of these isolated converters makes it possible to offer a product with high performance at low cost. The TME DC-DC converters require only 0.7 cm2 board space and are the perfect solution for space critical applications for board level power distribution. Single-in-line (SIP) package I/O isolation 1000Vdc High efficiency up to 80% Operating temperature range –40°C to +85°C Industry standard pinout 100% Burn-in (8 h) Lead free design, RoHS compliant
Spec
- Quantity:1piece
- Output Voltage : 9V dc
- Input Voltage Range : 21.6 → 26.4 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1000V dc
- Power Rating : 1W
- Output Current : 110mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Efficiency : 79%
- Package : SIP 4
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 10.2mm
- CODE No.:217-6632
