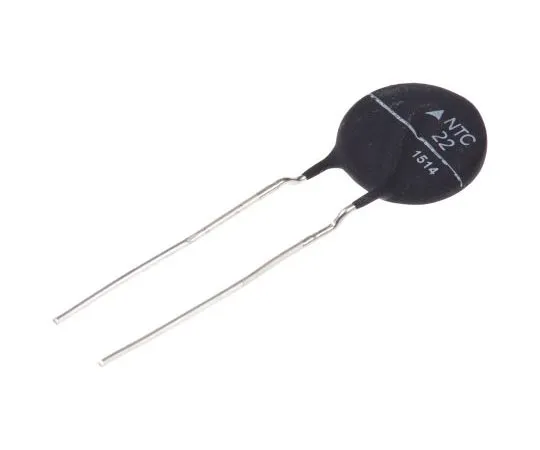

63-4732-12 EPCOS B57237S0220M000 Thermistor 22Ω, 15 (Dia.) x 7mm B57237S0220M000
Product Description
Product Model: 63-4732-12Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4732-12
Product Brand: EPCOS
Features
- UL recognised. Epcos Current Limiting S235/S236/S237/S364 Series. Applications in switch mode power supplies Soft-start motors, e.g. in vacuum cleaners Useable in series connections up to 265VRMS Coated thermistor disk Kinked leads of tinned, nickel-plated copper wire
Spec
- Quantity：1piece
- Temperature Coefficient Type : NTC
- Thermal Time Constant : 90s
- Resistance @ 25 °C : 22Ω
- Tolerance : ±20%
- Application : Soft Start Motor, Switching Power Supply
- Maximum Power Rating : 3100mW
- Depth : 7mm
- Dimensions : 15 (Dia.) x 7mm
- CODE No.:216-1400
