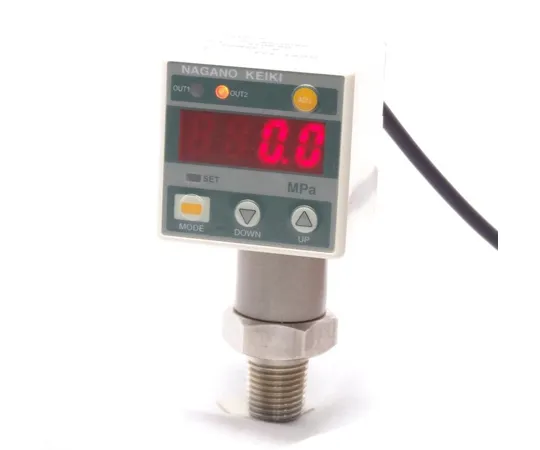

65-4315-06-20 General Industrial Digital Pressure Gauge with 0.5 MPa with Inspection Certificate GC61-174
Product Description
Product Model: 65-4315-06-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4315-06-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A high-pressure, high-corrosion type digital pressure gauge equipped with a highly reliable semiconductor vapor deposition pressure sensor.
- The GC61 ***s an SS sensor (semiconductor strain gauge sensor) that has proven to be ***d in various industrial fields. This SS sensor has an integrated structure consisting of the semiconductor strain gauge, the strain generating section, and the pressure connection section. The gauge section and the stainless steel diaphragm section are constructed without the *** of any adhesive or corrosive material, and therefore have excellent durability and stability.
Spec
- Shape (mounting): 0
- Connection: R1/4
- Material/Seal Method: Diaphragm: SUS630 (17-4 PH) Joint: SUS316
- Pressure Range: MPa_0~0.5
- Accuracy: ±(1.0%F.S. +1digit)at 23°C (display accuracy)
- Power: 12~24 VDC ±10%
- Output: NPN Open Collector x 2 Output (30 V DC, 80 mA max.)
- Treatment: Pear
