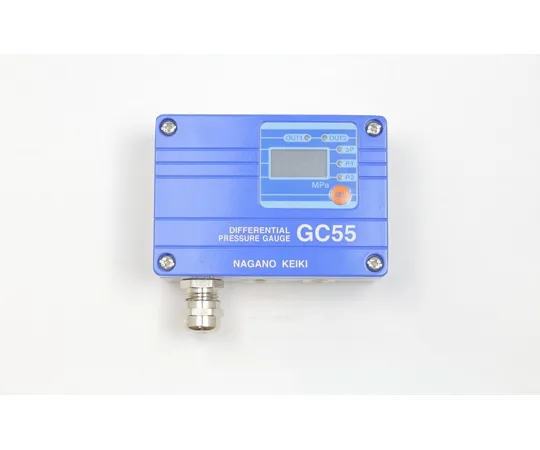

65-4315-04-20 Digital Differential Pressure Meter with Analog Output 1 MPa Inspection Certificate GC55-160
Product Description
Product Model: 65-4315-04-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4315-04-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A digital differential pressure meter that detects relatively large differential pressures of gases and liquids, suitable for use in filters and air dryer clogging detection. ・Equipped with two pressure sensors with high withstand voltage, data can be collected for three types: high pressure side, low pressure side and differential pressure.
Spec
- Connection: Rc1/8
- Material/Seal Method: Element: SUS630 (17-4 PH), Joint: SUS304
- Pressure Range: MPa_0~1
- Accuracy: P: ±(1.0%F.S. +1digit), P1, P2: ±(0.5%F.S. +1digit)
- Power: 12~24 V DC 60 mA or less
- Output: 2 photo relay outputs
- Treatment: Pear
