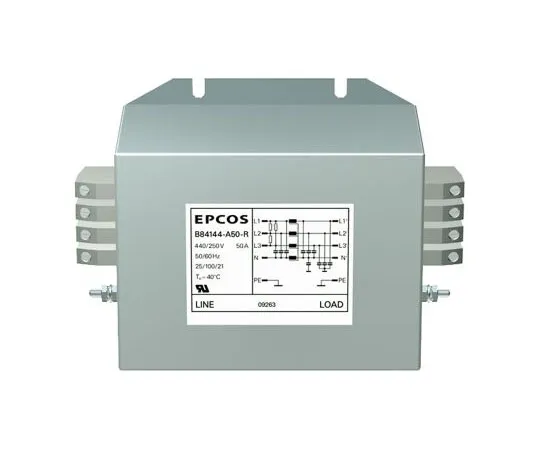

63-4732-08 EPCOS B84144A*R000 Series 36A 440 V ac 50 → 60Hz Flange Mount RFI Filter, with Tab Terminals 3 Phase B84144A0036R000
Product Description
Product Model: 63-4732-08Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4732-08
Product Brand: EPCOS
Features
- UL1283, CSA 22.2 No.8 1986. B84144-A Series. EPCOS B84144-A series RFI four line filters. Construced of a metal case with threaded bushes at *** faces for RF- Tight installation. Fasy to install and has a space saving design. Optimized leakage, High insertion loss. Rated voltage VR: 440/250 V AC.Rated current IR: 16 A to 180 A. For converters and power electronics. Applications. General applications for power electronics Wind farms UPS For machine tools, textile and packaging machines
Spec
- Quantity：1piece
- Maximum Current Rating : 36A
- Maximum Voltage Rating : 440 V ac
- Mounting Type : Flange Mount
- Termination Style : Tab
- Number of Phases : 3
- Series : B84144A*R000
- Operating Frequency : 50 → 60Hz
- Length : 156mm
- Depth : 216mm
- Height : 91mm
- Dimensions : 156 x 216 x 91mm
- Leakage Current : 4.1 mA
- Maximum Operating Temperature : +100°C
- Resistance : 3.5mΩ
- Standards Met : UL 1283
- CODE No.:216-0485
