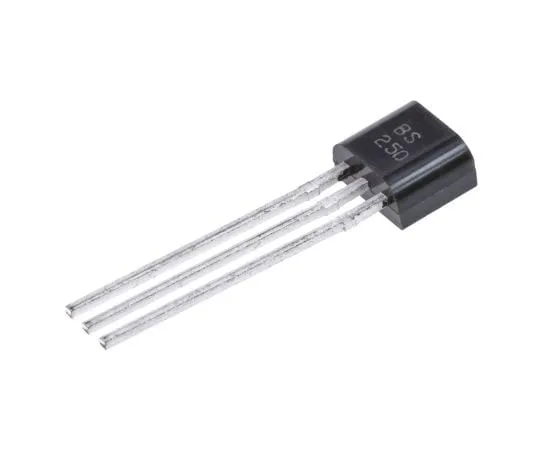

63-4732-07　BS250P P-Channel MOSFET, 230 mA, 45 V, 3-Pin E-Line Diodes Inc　BS250P
Electronic/Electrical Parts and Controll Equipments

63-4732-07　BS250P P-Channel MOSFET, 230 mA, 45 V, 3-Pin E-Line Diodes Inc　BS250P

model: 63-4732-07
brand: DiodesZetex
category: Electronic/Electrical Parts and Controll Equipments

Product Description

Product Model: 63-4732-07Product Brand: DiodesZetex Fea […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code
Online Consultation

Product Details

Product Model: 63-4732-07
Product Brand: DiodesZetex

Features

  • P-Channel MOSFET, 40V to 90V, Diodes Inc

Spec

  • Quantity：1bag(5pieces)
  • Channel Type : P
  • Maximum Continuous Drain Current : 230 mA
  • Maximum Drain Source Voltage : 45 V
  • Maximum Drain Source Resistance : 14 Ω
  • Maximum Gate Threshold Voltage : 3.5V
  • Maximum Gate Source Voltage : -20 V, +20 V
  • Package Type : E-Line
  • Mounting Type : Through Hole
  • Transistor Configuration : Single
  • Channel Mode : Enhancement
  • Category : Small Signal
  • Maximum Power Dissipation : 700 mW
  • Typical Input Capacitance @ Vds : 60 pF@ 10 V
  • CODE No.:215-6688
