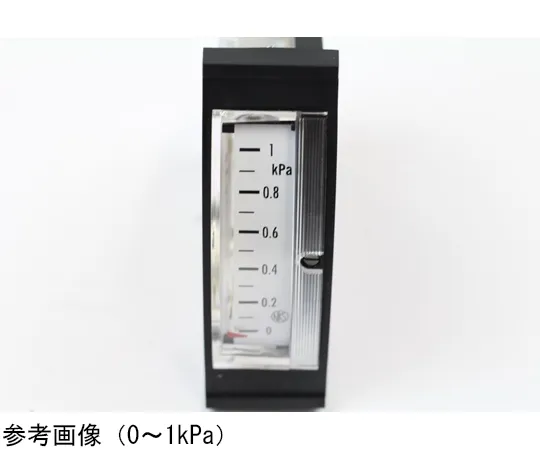

65-4308-05 Differential pressure gauge 1 kPa DG87-741
Product Description
Product Model: 65-4308-05Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 65-4308-05
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- This instrument is mainly ***d to detect differential pressure due to pressure loss in air filters for air conditioning, and can be ***d for very low pressure measurement. It is easy to read beca*** of its edgewise shape, and can be ***d as a fine differential pressure meter as well as a flow meter and a fine pressure meter.
Spec
- Magnitude (mm): -
- Shape (mounting): Panel projection type, vertical scale type
- connections: Φ5.5 bamboo joints
- Materials: Silicone rubber, polycarbonate resin, methacrylic resin, phosphor bronze, brass, neoprene, NBR
- Pressure Range: kPa_0~1
- Accuracy: ±2.5%F.S.
- Treatment: Pear
