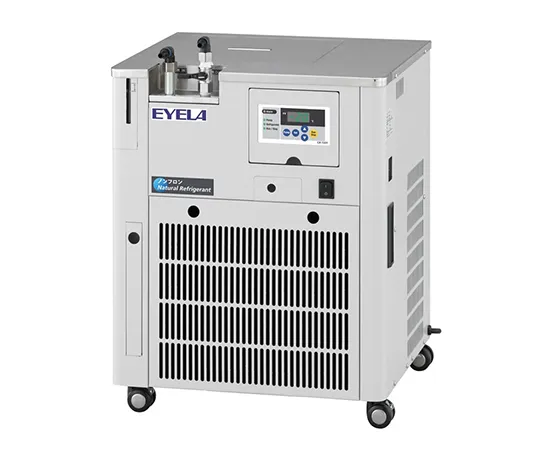

Spec

• Cooling/Circulation System: Air-Cooling/Sealed Circulation System
• Performance
• Temperature Setting Range: -20°C~20°C (Without Heater)
• Temperature adjustment accuracy: ±2°C
• Cooling Capacity (at Liquid Temperature): 10°C: 1190 W (1020kcal/h), 0°C: 880 W (758kcal/h), -10°C: 630 W (542kcal)
• External Circulation Capacity (50 Hz/60Hz): Maximum Flow 12/14Lmin, Maximum Pump Head 9.5/13 L (Discharge Pressure: 0.09/0.13 MPa)
• Function
• Temperature control: refrigerator ON/OFF control
• Temperature Setting/Display: Sheet Key Input/Digital Display, Minimum Digit 1°C
• Safety Functions: Leakage/Overcurrent Breaker, Temperature Controller Self-Diagnosis Function, Chiller Overload Relay, High Pressure Switch, Chiller Protection Timer, Circulation Pump Thermal Protector
• Accessory: Ball Valve
• External Input/Output: Communication Terminal for Vacuum Controller
• Configuration
• Air Cooled Output 775 W/R290
• Cooling Coil: Copper-Nickel Plated
• Standard
• External Circulation Nozzle: One-touch Connector Inner Diameter 10 mm, One-touch Hose Nozzle Outer Diameter 10 mm
• Water Tank Material: Stainless Steel
• Water Tank Dimensions (mm), Capacity: 270 W x 270D x 175 H, 12.8 L (Liquid Amount 10 L)
• Operating ambient temperature range: 5~35°C
• External Dimensions (mm), Weight: 460 W x 430 (500) D x 570 (598) H, About 43 kg
• Power Input/Power Voltage: 11 A, 1.1kVA/100 V 50/60Hz
• *Performance is measured at room temperature of 20°C, clean water, rated supply voltage of 50 Hz, and no load.
• *The cooling capacity is ±10% of the display capacity.
• *The external circulation capacity is ±10% of the display capacity.
• *The cooling temperature reached at room temperature of 35°C is -10°C.
• *Use a low-temperature heating medium when setting the liquid temperature to 10°C or lower.
• *Dimensions in () include projections.
• *Pure water cannot be circulated.
• *Do not block both sides of the product during installation. If one side is blocked, the cooling capacity decreases by about 10%.
