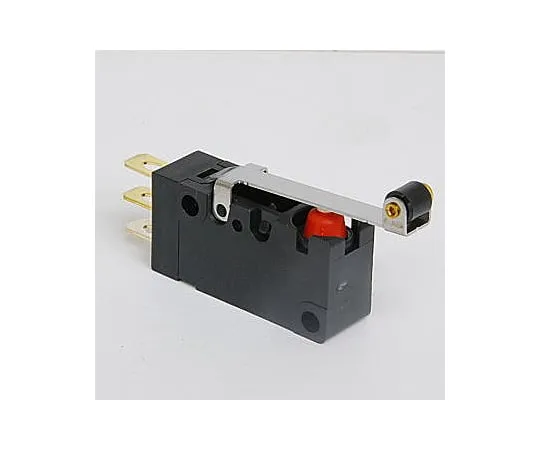

Features

• Uses epoxy resin to ensure stable sealing.
• Can be ***d in wet or dusty areas.
• The internal structure ***s the proven V-series mechanism to achieve high accuracy and durability.
• The attachment is the same as the shape V.
• Suitable for applications requiring environmental resistance of automobiles, agricultural machinery, large home appliances and business equipment. It is a highly durable microswitch often ***d for embedded applications. It is sometimes ***d as a limit switch for machines.
• Mounting: Panel
• Actuator: Hinge Roller/Lever Type
• Contact Configuration: 1c
• Electrical Rating (Resistive Load): AC125V 5 A AC250V 5 A
• Terminal Shape: Soldering Terminal
• Force Required for Operation: 1.18 N
• Mounting Pitch (Hole Diameter - Pitch): φ3.1-22.2 mm
