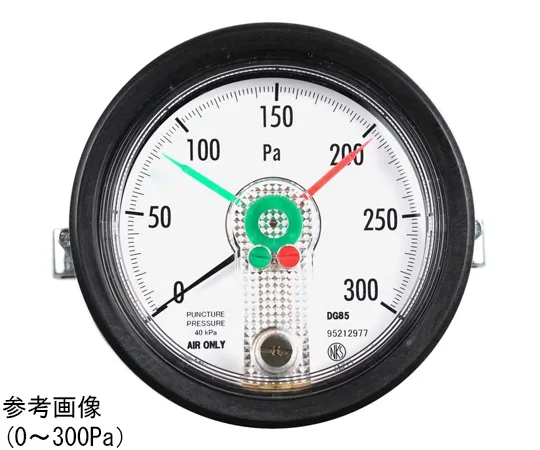

65-4307-19 Differential Pressure Gauge 100 Pa DG85-29B
Product Description
Product Model: 65-4307-19Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 65-4307-19
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- This instrument is mainly ***d to detect differential pressure due to pressure loss in air filters for air conditioning, and can be ***d for very low pressure measurement. A high-precision differential pressure meter that can be ***d as a fine differential pressure meter, as well as a flowmeter and a fine pressure meter.
- Comes with 2 installation needles.
Spec
- Size (mm): Φ85
- Shape (Mounting): Embedded D Frame
- connections: outside diameter Φ7 bamboo joints
- Materials: silicone rubber, polyacetal resin, methacrylic resin, aluminum alloy, phosphor bronze, brass, neoprene, NBR
- Pressure Range: Pa_0~100
- Accuracy: ±2.5%F.S.
- Treatment: Pear
