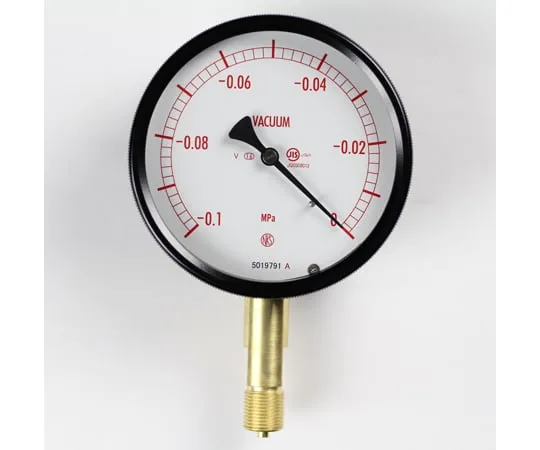

65-4298-22 Sealed Pressure Gauge (100Φ) Vacuum Gauge (Negative Pressure Gauge) Vertical A Frame for Vibration Resistance -0.1~0 MPa BE10-131
Product Description
Product Model: 65-4298-22Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 65-4298-22
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is ***d in a wide range of fields.
- The *** of a sealed case allows it to be ***d under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
Spec
- Size (mm): Φ100
- Shape (Mounting): Vertical A-Frame
- Connections: G3/8B
- Material: Brass
- Performance: For Vibration Resistance
- Pressure Range: MPa_-0.1~0
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
