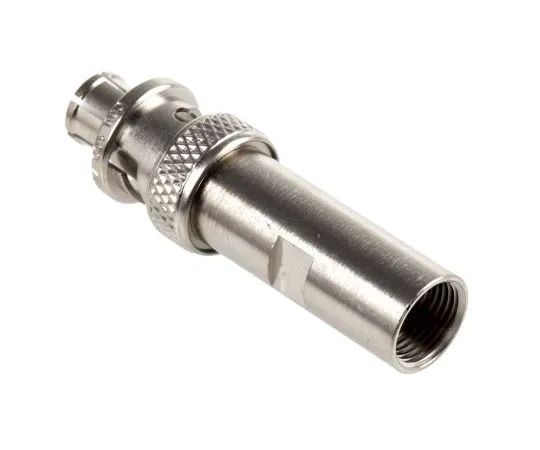

63-4728-48 Radiall SHV Series Straight 50Ω Cable Mount BNC Connector, Plug, Nickel, Clamp Termination, RG142, RG58 R317005000
Product Description
Product Model: 63-4728-48Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-4728-48
Product Brand: Radiall
Features
- Radiall 50 Ohm SHV RF Coaxial Cable Clamp Plug Connectors. 50 Ohm SHV safe high voltage RF coaxial straight cable plugs with bayonet fixing, cable clamp termination, nickel plated brass body and gold plated center contact. These 50 Ohm SHV RF coax cable plugs have a test voltage of 10000 Vdc when unmated and a test voltage of 12000 Vdc when mated. The following RF coaxial cables can be ***d with these 50 Ohm SHV RF coaxial plugs: RG142 and RG58. These plugs are not intermateable with the BNC or BNC.HT series
Spec
- Quantity：1piece
- G***er : Male
- Mounting Type : Cable Mount
- Impedance : 50Ω
- Termination Method : Clamp
- Body Orientation : Straight
- Cable Type : RG142, RG58
- Bulkhead : No
- Operating Frequency : 0 → 2GHz
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +165°C
- Series : SHV
- Contact Material : Beryllium Copper
- Contact Plating : Gold
- CODE No.:212-7416
- RoHS3 (EU)2015/863 Certificates can be issued
