Features

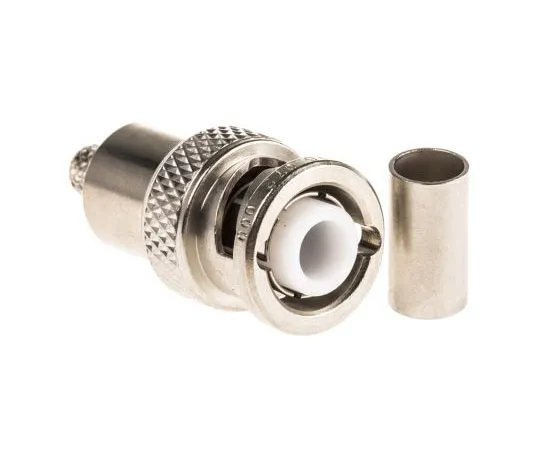

• Radiall 50 Ohm BNC.HT High Voltage RF Coaxial Crimp Plug. From Radiall, this BNC.HT Series coaxial plug is suitable for high voltage. The plug has a test voltage of 6000 V dc when unmated and a test voltage of 10000 V dc when mated. The plug has crimp cable connection with a bayonet fixing for reliable mating. The 50 Ω plug has a nickel plated brass body and a silver plated contact, with a PTFE Dielectric. Features ; Benefits. Suitable for *** with RG-141, RG-58 and KX 15 Cables Not mateable with the BNC or SHV Series Insulation Resistance: 5000 MΩ VSWR: ;1.2 + 0.2F (GHz) Temperature Range: -55°C to +155°C. Product Application Information. This high-voltage BNC Radio Frequency connector has applications in radio antennas and avionics.
