67-2190-27 Capsule Filter CIK PP general application 1.0um 5 inch 2650 cm2 CIKPP0100GNLL2HBHH0
Product Description
Product Model: 67-2190-27Product Brand: GVS Features In […]
Contact Us
Product Details
Product Model: 67-2190-27
Product Brand: GVS
Features
- In-line integrity test and repeated sterilization

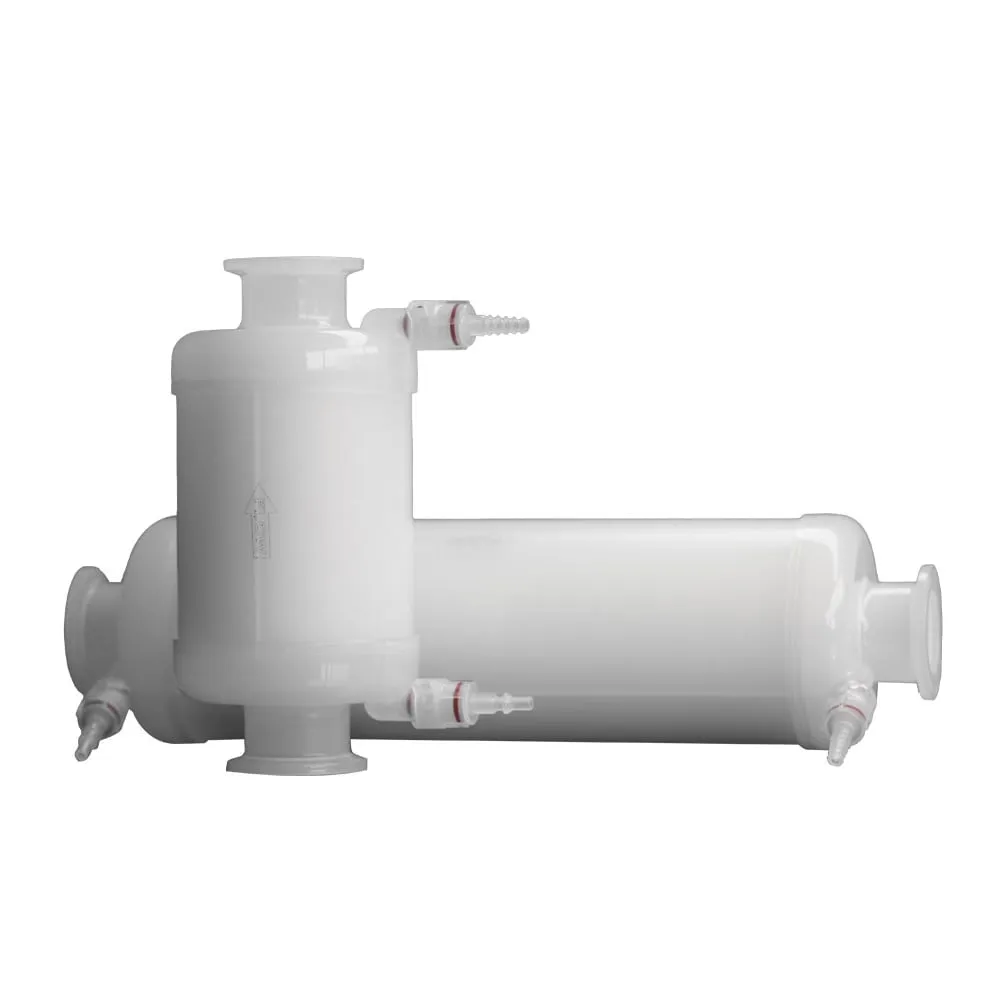

- CIK Series -PP Membrane Capsule Filter
- The CapsFlowCIK series is a CIKPP capsule filter with a depth structure of polypropylene media.
- It offers a wide range of chemical compatibility.
- Low pressure loss, higher stain retention capacity at high flow rates, and low elution.
- You can select nominal and absolute filtration accuracy.
Spec
- Pore diameter: 1.0 μm
- vent/drain options: step hose barb
- fitting options: 1/2 inch hose barb
- Filter Area: 2650 cm2 (5.0")
- Material: Filter Media/Polypropylene, Media Support/Polypropylene, End Cap/Polypropylene, Inner Core/Polypropylene, Outer Cage/Polypropylene
- sealing methods: thermal bonding
- maximum operating condition
- Maximum allowable pressure: liquid/25°C/5 bar, gas/25°C/3.5 bar
- Maximum Operating Temperature: 80°C/125°C/30 min/25 cycles, 135°C/30 min/15 cycles
- Toxicity: USP ClassVI Plastic Biosafety Test
- Food Safety Compliance: FDA21CFR Compliance
- Applications: Treated Water, Vinegar, Aqueous Solution, Beer, Wine, Spirits, Juices, Soft Drinks, Edible Oils, Bulk Chemicals, Pharmaceutical Intermediates
- Number of Pieces: 1 Box (1 Piece Pack)
