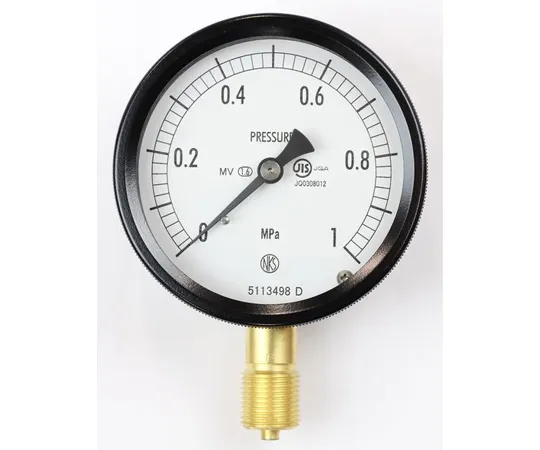

65-4294-72 Sealed Pressure Gauge (75Φ) Vertical A-Frame 1 MPa for Steam and Vibration Resistance BC10-131
Product Description
Product Model: 65-4294-72Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 65-4294-72
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is ***d in a wide range of fields.
- The *** of a sealed case allows it to be ***d under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
Spec
- Size (mm): Φ75
- Shape (Mounting): Vertical A-Frame
- Connections: G3/8B
- Material: Brass
- Performance: For steam and vibration resistance
- Pressure Range: MPa_0~1
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
