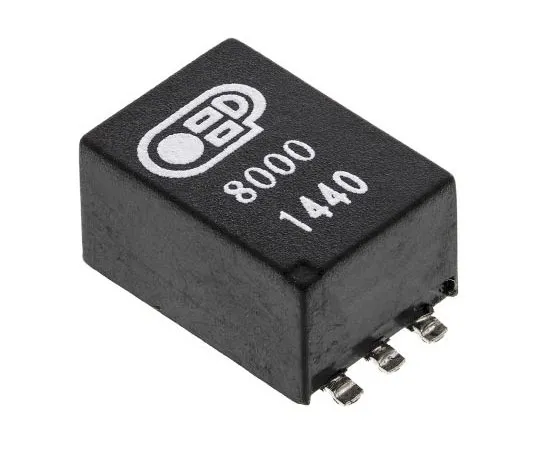

63-4727-59 1:1 Surface Mount Telecom Transformer, 3.6H, 111Ω OEP8000
Product Description
Product Model: 63-4727-59Product Brand: OEP Features BS […]
Contact Us
Product Details
Product Model: 63-4727-59
Product Brand: OEP
Features
- BS415; EN60950; EN41003. BABT. Stock no. ; 210-6273 210-6273 is a surface mount device. OEP, Line Isolating Transformers. From OEP, this selection of compact encapsulated PCB and surface mount line isolating transformers are for *** in data transmission applications. They are approved and certified for *** in telecommunications circuits required to meet BS6305 (Speech and Non-Speech Class A) providing the line hold current is diverted from the windings by a choke or other electronic means. Constructed from resin encapsulated in a glass filled nylon box, these line isolating transformers are flame retardant to UL94-V0 requirements.
Spec
- Quantity：1piece
- Primary Inductance : 3.6H
- Primary DC Resistance : 111Ω
- Secondary DC Resistance : 111Ω
- Insertion Loss : 4dB
- Turns Ratio : 1:1
- Mounting Type : Surface Mount
- Leakage Inductance : 4100µH
- Dimensions : 9 x 7.3 x 14.2mm
- Depth : 14.2mm
- Length : 9mm
- Width : 7.3mm
- Maximum Operating Frequency : 4kHz
- Minimum Operating Frequency : 200Hz
- Maximum Temperature : +85°C
- CODE No.:210-6273
