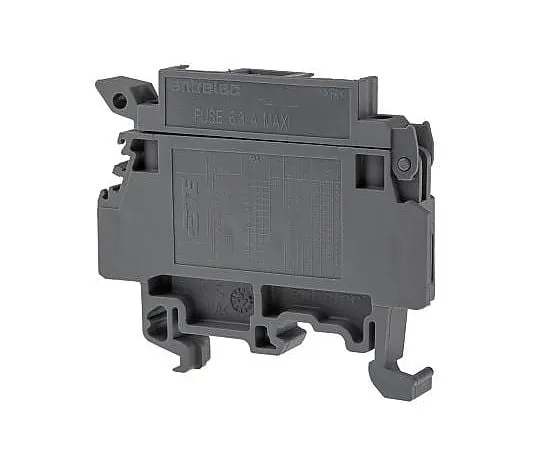

63-4727-52 Entrelec, Grey, MA Series, 6.3A F***d DIN Rail Terminal 1SNA115657R2500
Product Description
Product Model: 63-4727-52Product Brand: Entrelec Featur […]
Contact Us
Product Details
Product Model: 63-4727-52
Product Brand: Entrelec
Features
- UL listed, CSA certified. F***d Lever Action. ABB series of F***d terminals with a lever action f*** carrier, the standard product accepts both 20 ;font face="symbol">´ ;/font>5mm and 25 ;font face="symbol">´ ;/font>5mm f***s whilst terminals with ‘f*** failed ‘ indication are suited to 20 ;font face="symbol">´ ;/font>5mm f*** links only. F*** failed indication terminals are available either a LED suited to 24V dc, or with a neon suited to 110-220V usage.
Spec
- Quantity：1bag(5pieces)
- Wire Size : 14 (with ferrule) AWG, 12 AWG
- Cable CSA : 4 (stranded) mm², 6 (solid) mm²
- Colour : Grey
- Pitch : 8mm
- F*** Size : 5 x 20 mm, 5 x 25 mm
- Current Rating : 6.3A
- Voltage Rating : 630 V
- Termination Method : Screw Clamp
- Rail Type Compatibility : G, Top Hat
- Series : MA
- Maximum Operating Temperature : +110°C
- Minimum Operating Temperature : -55°C
- CODE No.:210-4570
