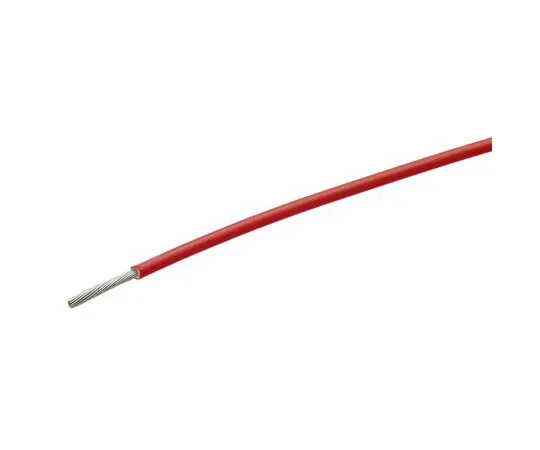

63-4727-36 TE Connectivity FlexLite Series Red Equipment Wire, 0.33 mm² Flame Retardant, Low Smoke Density, Self-extinguishing, FLT0111-0.35-2
Electronic/Electrical Parts and Controll Equipments

63-4727-36 TE Connectivity FlexLite Series Red Equipment Wire, 0.33 mm² Flame Retardant, Low Smoke Density, Self-extinguishing, FLT0111-0.35-2

model: 63-4727-36
brand: TE Connectivity

Product Description

Product Model: 63-4727-36Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4727-36
Product Brand: TE Connectivity

Features

  • UL1385. FlexLite UL Wire. Flexible, double insulated high performance wire that can be ***d for industrial and commercial applications. These include control panels, electrical appliances, electric motors and robotics. Features ; Benefits Flexible with non-melting insulation Enables bundles to be routed through areas where conventional wires cannot be ***d UL style 1385 CSA Class 5851 Dual wall insulation (Class 2 equipment) Meets requirements of VW-1 Flammability Excellent fluid and chemical resistance 150°C spec WCD645 600 V rated Lightweight and small size

Spec

  • Quantity:1roll(100m)
  • Cross Sectional Area : 0.33 mm²
  • Sheath Colour : Red
  • American Wire Gauge : 22 AWG
  • Core Strands : 19/0.15 mm
  • Insulation Material : Polyolefin
  • Outer Diameter : 1.21mm
  • Length : 100m
  • Voltage Rating : 600 V
  • Conductor Material : Tinned Copper
  • Maximum Operating Temperature : +150°C
  • Series : FlexLite
  • Standards Met : UL Listed
  • CODE No.:208-5558
