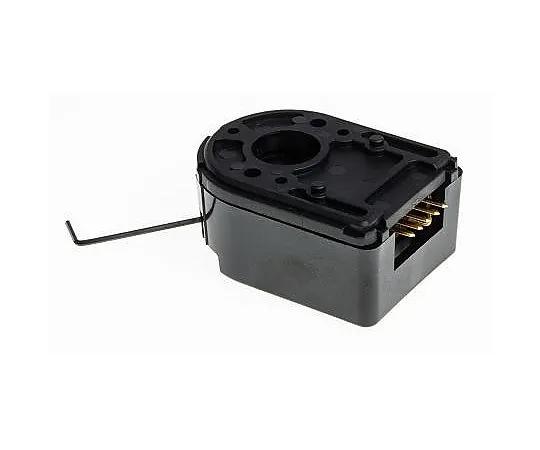

63-4725-77 Broadcom Incremental Encoder 500 ppr 30000rpm Hollow 4.5 → 5.5 V dc HEDS-5540#A06
Product Description
Product Model: 63-4725-77Product Brand: Broadcom Featur […]
Contact Us
Product Details
Product Model: 63-4725-77
Product Brand: Broadcom
Features
- Miniature Hollow Shaft Encoders. 500ppr encoders designed for fitting directly onto motor shafts etc. Both versions have 2 digital output waveforms which are 90° out of phase to provide resolution and direction information. However, the 3 channel version also provides a pulse once per revolution output (index) for added versatility 5V dc operation with TTL compatible outputs -40 to +100°C operating temperature Connection via plug-in cable assemblies, available separately
Spec
- Quantity：1piece
- Pulses Per Revolution : 500
- Encoder Technology : Incremental
- Maximum Revolutions : 30000rpm
- Output Signal Type : Quadrature
- Shaft Type : Hollow
- Supply Voltage : 4.5 → 5.5 V dc
- Overall Height : 41.1mm
- Overall Width : 30mm
- Overall Depth : 18.3mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +100°C
- Switching Frequency : 100 kHz
- CODE No.:205-6881
