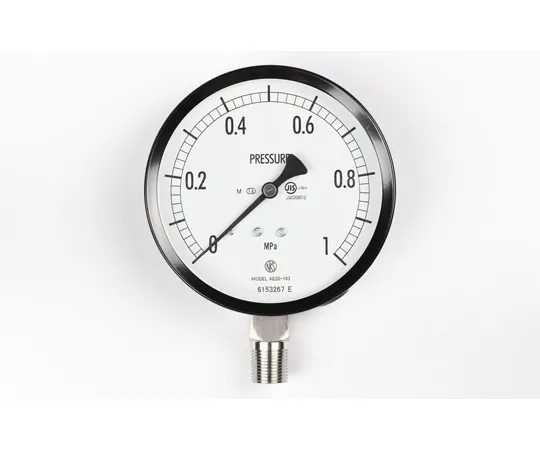

65-4286-50-20 Normal Pressure Gauge (Φ100) Vertical A Frame for Steam with 1 MPa with Inspection Certificate AE20-183
Product Description
Product Model: 65-4286-50-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4286-50-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is ***d in a wide range of fields.
Spec
- Size (mm): Φ100
- Shape (Mounting): Vertical A-Frame
- Connection: R3/8
- Material: SUS
- Performance: For steam
- Pressure Range: MPa_0~1
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
