Electronic/Electrical Parts and Controll Equipments

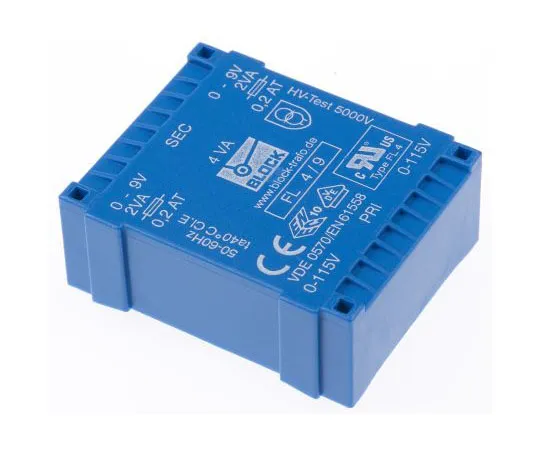

63-4724-81 9V ac 2 Output Through Hole PCB Transformer, 4VA FL 4/9
Product Description
Product Model: 63-4724-81Product Brand: Block Features […]
Contact Us
Product Details
Product Model: 63-4724-81
Product Brand: Block
Features
- VD 61 558. Transformer with 2 x 24V outputs are not VDE, SEV approved. PCB Mounting Low Profile 115 / 230Vac Primary. Twin 115Va.c. 50 to 60Hz primary windings for series or parallel connection Twin secondary windings for series or parallel connection Low profile compact design Vacuum epoxy resin moulded to UL94-V0 rating Double section glass fibre reinforced polyamide bobbins 100% electrical and flash tested Low inter-winding capacitance Low radiated noise Extra fixing holes for secure board mounting Standard: EN60742, VDE 0551, IEC 61558
Spec
- Quantity：1piece
- Secondary Voltage Rating : 9V ac
- Power Rating : 4VA
- Primary Voltage Rating : 115V ac, 230V ac
- Number of Outputs : 2
- Length : 53mm
- Width : 19.6mm
- Depth : 44mm
- Dimensions : 53 x 19.6 x 44mm
- Weight : 145g
- Mounting Type : Through Hole
- Maximum Temperature : +40°C
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- CODE No.:201-6940
