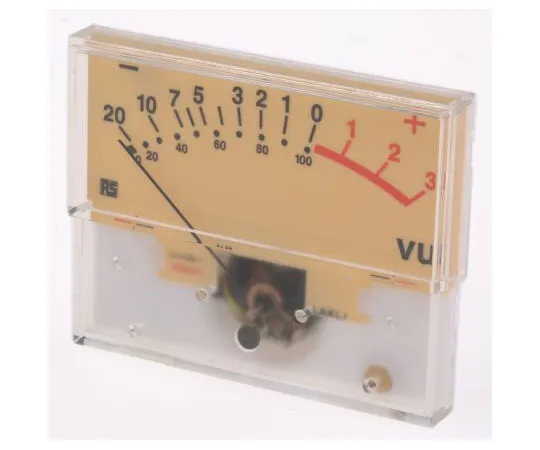

63-4724-72 Sifam Tinsley AC Analogue Voltmeter, 26 (Dia.) mm, IS 11179
Electronic/Electrical Parts and Controll Equipments

63-4724-72 Sifam Tinsley AC Analogue Voltmeter, 26 (Dia.) mm, IS 11179

model: 63-4724-72
brand: Sifam Tinsley

Product Description

Product Model: 63-4724-72Product Brand: Sifam Tinsley F […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4724-72
Product Brand: Sifam Tinsley

Features

  • Standard Range AL 19, 29 ; 39W Series. Performance based on BS6840:Part 17:1991 ; IEC 268-17:1990, which cover dynamic characteristics, frequency response, harmonic distortion, input impedance and temperature range Calibrated for *** with a 3.6kΩ resistor 4VU above the scale marking so that reference deflection (0VU) is produced by a signal 4VU above 1mW in 600Ω (1.228V) Transparent acrylic front and polystyrene (SAN) rear body moulding with various bezels available separately Taut band core magnet movement ho***d in a 26mm diameter barrel occupies minimum behind panel space Rear zero adjustment screw Connections via 6mm tag terminals (High Specification - M4 bolt terminals) Meters do not suffer from calibration interference when mounted on ferrous panels Black ABS front and behind panel mounting bezels, supplied separately Dual meter scale indicates -20 to 3dB and 0 to 100% Rear mounting 12V bulb top-lighting assemblies are available for rear mounted meters Operating temperature range –25 to +55°C Panel cut-out for barrel Ø 27mm, fixing stud size M2.5 x 10mm

Spec

  • Quantity:1piece
  • Current Type : AC
  • Cutout Size : 26 (Dia.) mm
  • Cutout Height : 59mm
  • Cutout Width : 76mm
  • Minimum Temperature : -25°C
  • Maximum Temperature : +55°C
  • Meter Type : Moving Coil
  • CODE No.:201-0324
