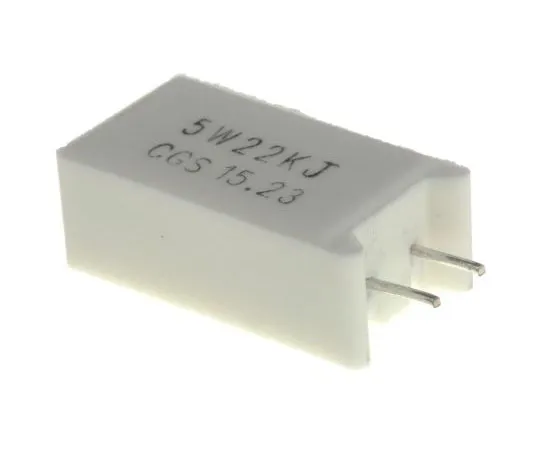

63-4724-17 TE Connectivity 22kΩ 5W Metal Film Fixed Resistor ±5% ±300ppm/°C SQMR522KJ
model:
63-4724-17
brand:
TE Connectivity
Product Description
Product Model: 63-4724-17Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4724-17
Product Brand: TE Connectivity
Features
- 5W SQM5 Series. TE Connectivity SQ series high power resistors featuring fine non-alkali ceramic cores embodied in ceramic cases and sealed with inorganic silica filler. This provides the SQ series with high insulation resistance, low surface temperature, excellent TCR and an entirely fireproof construction. The SQ series resistors are ideally suited to any application where efficient thermal performance is required. Flameproof Power rating of 5W at 70°C Resistor marked with value Overload Maximum 700V Working Voltage 350V Ideal for small batch production, development and R&D department
Spec
- Quantity：1bag(5pieces)
- Resistance : 22kΩ
- Power Rating : 5W
- Tolerance : ±5%
- Technology : Metal Oxide
- Series : SQM5
- Lead Pitch : 5mm
- CODE No.:199-7927
