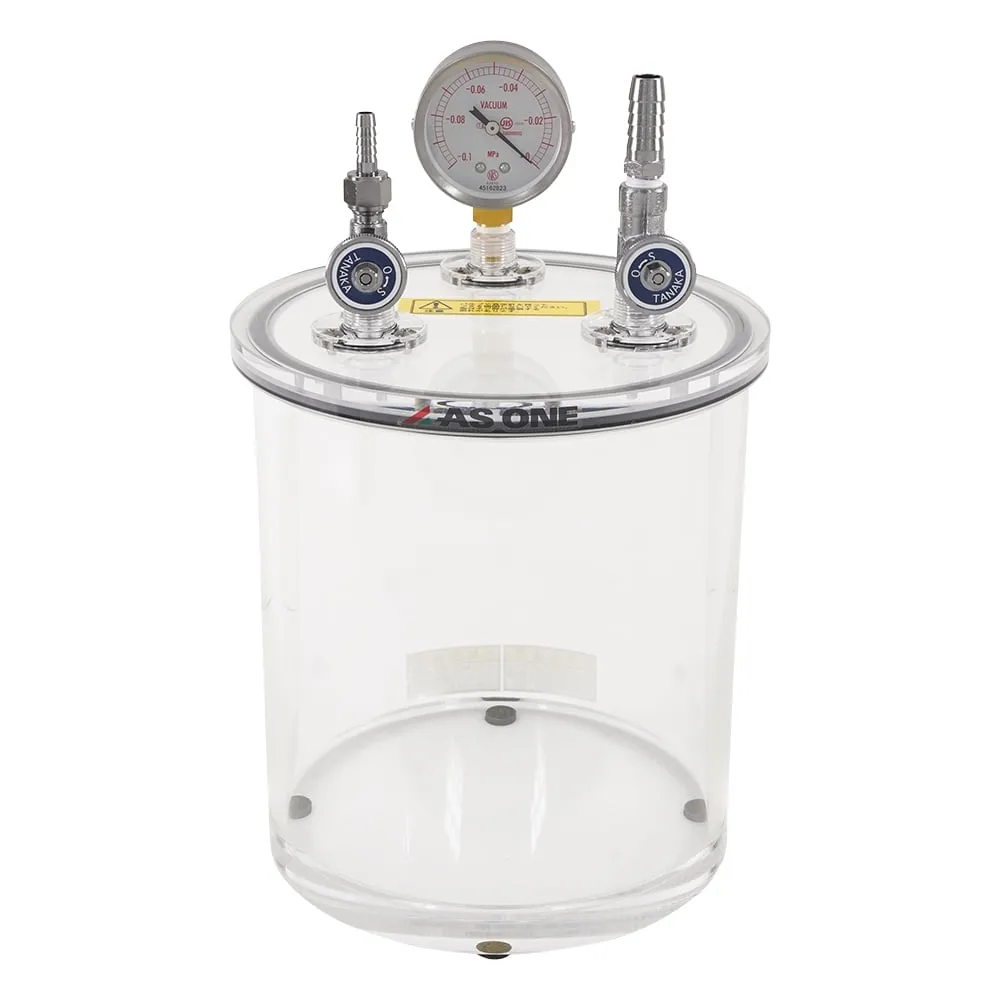

2-7875-01-20 Acrylic Small Vacuum Container, 215 x 335 mm with Calibration Certificate 200
Product Description
Product Model: 2-7875-01-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 2-7875-01-20
Product Brand: AS ONE Corporation
Spec
- Allowable vacuum: 1 Torr (about 133 Pa)
- Material: Torso, Bottom Plate, Top Plate/Transparent Reinforced PMMA (acrylic), Valve/Vacuum Meter Mounting Part/PC (polycarbonate)
- Plate thickness: torso/8 mm, bottom plate/20 mm, top plate/20 mm
- Weight: 3.2 kg
- External dimensions (mm): phi 215 x 335 (* * including vacuum meter)
- Internal dimensions (mm): phi 184 x 192
- Accessories: Vacuum Valve: 1 x Small/Outer Diameter Φ8 mm, 1 x Large/Outer Diameter phi 14 mm, Calibrated Vacuum Gauge x 1
- Recomm***ed Vacuum Pumps: (1 -4148 -11) Dry Vacuum Pump DTC -22, (1 -671 -06) Dry Vacuum Pump DA -20 D
