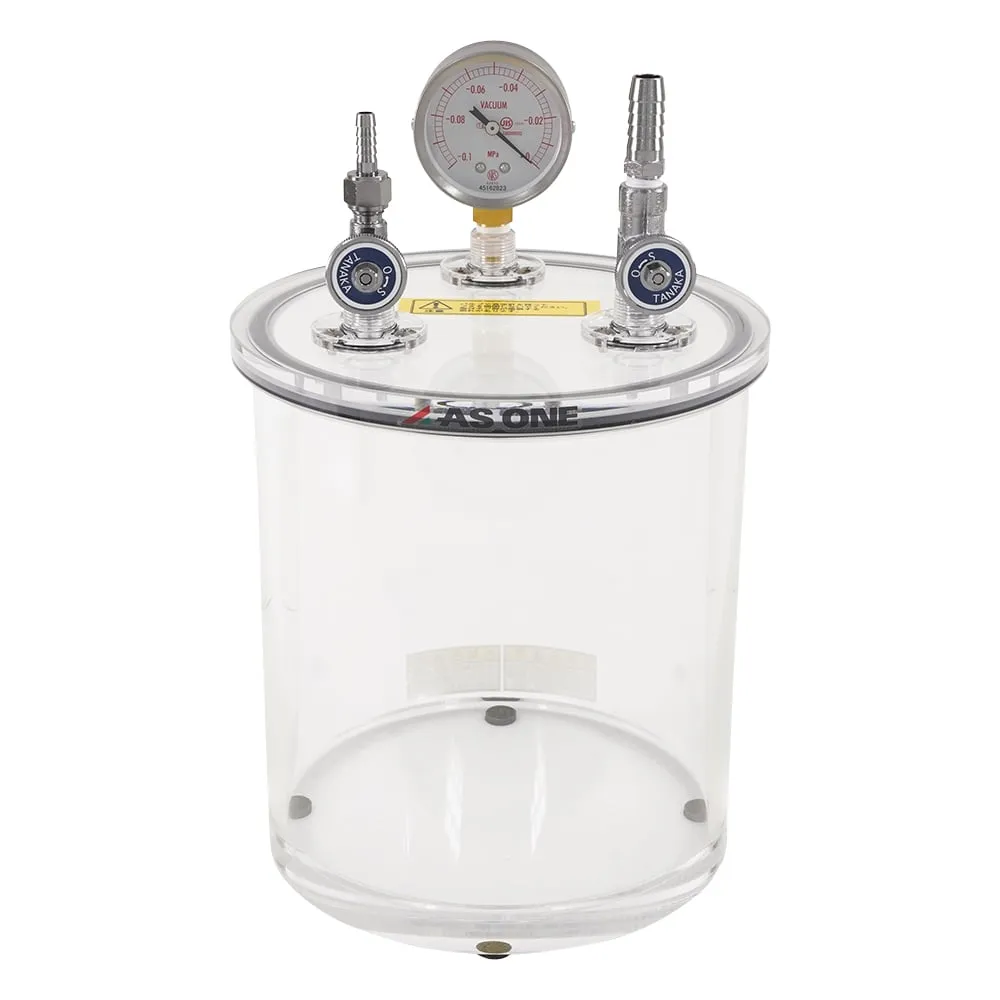

2-7875-01 Acrylic Small Vacuum Container φ215 x 335mm 200
Product Description
Product Model: 2-7875-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-7875-01
Product Brand: AS ONE Corporation
Features
- Acrylic vacuum container for attaching and detaching top plate.
Spec
- Allowable vacuum: 1 Torr (about 133 Pa)
- Material: Body, bottom plate, top board / transparent reinforced PMMA (acrylic), valve vacuum gauge mounting / PC (polycarbonate)
- plate thickness: Body / 8 mm, bottom plate / 20 mm, top board / 20 mm
- Weight: 3.2 kg
- Type number: 200
- external dimension (mm): 215 x 335
- inner size (mm): 184 x 192
- Accessories: vacuum valves: small / outer diameter φ8 mm x 1 piece, large / outer diameter φ 14 mm x 1 piece, vacuum gauge x 1 piece
- Recomm***ed vacuum pumps: (1-4148-11) Dry vacuum pumps DTC-22, (1-671-06) Dry vacuum pumps DA-20 D
