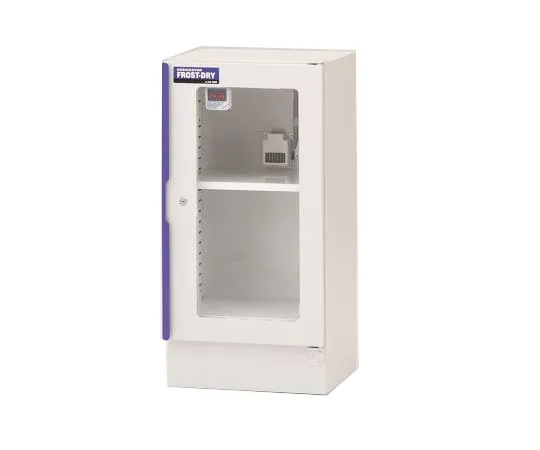

2-7431-31 Frost Dry Desiccator 450 x 400 (496) x 900mm N-SFD-CB
Product Description
Product Model: 2-7431-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-7431-31
Product Brand: AS ONE Corporation
Features
- Uses a cooling and dehumidification system for speedy dehumidification.
- Uses a capacitive humidity sensor for accurate humidity measurement even in low humidity regions.
- Suitable for storage of various samples, precision equipment and semiconductor related products for stable humidity control.
- Energy-saving design that automatically reduces power consumption near the set humidity and in the low humidity range.
- Since the moisture frozen in the fins is automatically deiced by a small fan, the reverse inflow of humidity into the chamber due to the rise in cooling fin temperature is suppressed.
Spec
- Dehumidification method: Cool dehumidification by Peltier module
- Thawing method: Thawing by DC fan blast
- Humidity setting range: 5 ~ 50% RH (1% increments)
- Reached humidity (after 12 h): about 15% RH (Reference: both at no internal load/25 degrees C/60% RH)
- Humidity display accuracy: +/- 6% * Ambient temperature: 25 degrees Celsius
- Humidity control method: ON/OFF control by digital input of relative humidity
- Temperature/humidity sensor (grounded) (Class 2): Temperature/band cap temperature sensor, Humidity/capacitive humidity sensor
- Material: Body/Steel Plate Melamine Baked Coating, Front/Glass
- Attached shelf boards (made of steel): 2
- Shelf mounting pitch: 30 mm
- Shelf load capacity: approx. 40kg/sheet (at uniform load)
- Power supply: AC100V 50/60Hz
- Power consumption: normal/90 W, energy saving/55 W
- Operating sound (1 m ahead): normal/approx. 51 dB, energy saving/approx. 4dB
- Weight: 24kg
- External dimensions (mm): 450 x 400 (496) x 900 * The sizes in () include the dehumidification unit on the back.
- Internal dimensions (mm): 410 x 365 x 840
- Caster: None
- RoHS3 (EU)2015/863 Certificates can be issued
*This product might require extra fees.
