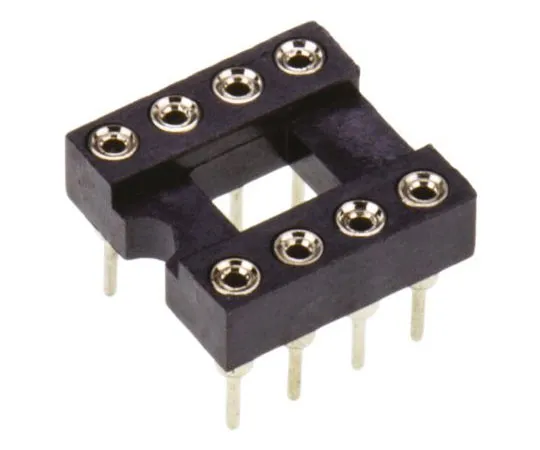

63-4723-01 Winslow 2.54mm Pitch Vertical 8 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A W30508TTRC
Product Description
Product Model: 63-4723-01Product Brand: Winslow Feature […]
Contact Us
Product Details
Product Model: 63-4723-01
Product Brand: Winslow
Features
- Low Profile, Turned Pin. Low profile high-quality machined contact d.i.l. sockets comprising a four-finger (3 to 5 microns) tin over nickel-plated beryllium-copper inner contact, with a tin-plated brass outer shell. Temperature Range: -55°C to +150 °C
Spec
- Quantity：1set(50pieces)
- Number of Contacts : 8
- Mounting Type : Through Hole
- Pin Type : Turned
- Pitch : 2.54mm
- Row Width : 7.62mm
- Frame Type : Open Frame
- Termination Method : Solder
- Contact Plating : Tin
- Current Rating : 5A
- Orientation : Vertical
- Length : 10.08mm
- Width : 4.6mm
- Depth : 10.14mm
- Dimensions : 10.08 x 4.6 x 10.14mm
- Maximum Operating Temperature : +150°C
- CODE No.:197-2647
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7994-96 QANTEK, 20 MHz XO Oscillator, ±50ppm HCMOS, 8-Pin PDIP QX8T50B20.00000B50TT QX8T50B20.00000B50TT
model: 63-7994-96
brand: QANTEK
Electronic/Electrical Parts and Controll Equipments

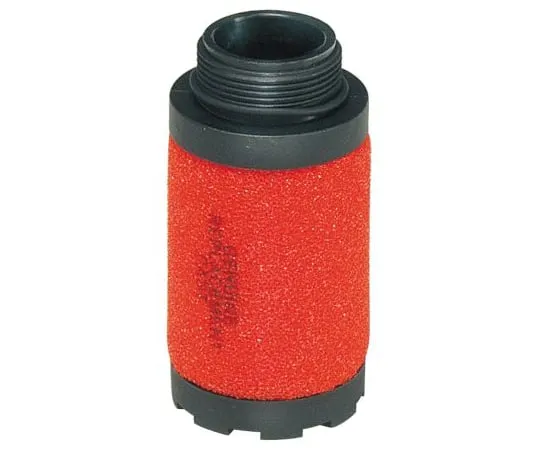

64-1671-76 Parker 0.01μ Replacement Filter Element P32KA00ESC
