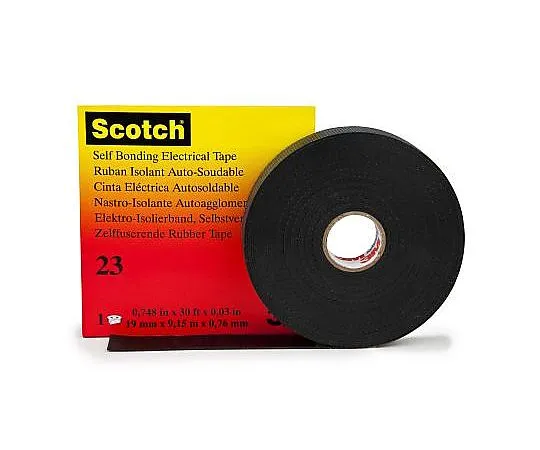

63-4722-01 3M Scotch® 23 Black Self Amalgamating Tape 19mm x 9m SCOTCH 23 9.15X19
Product Description
Product Model: 63-4722-01Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-4722-01
Product Brand: 3M Company
Features
- Scotch® Rubber Splicing Tape 23. Scotch® Rubber Splicing Tape 23 is a highly conformable 0.76 mm thick, self-amalgamating EPR (Ethylene Propylene Rubber) base for rubber splicing. It is designed to splice and terminate cables with overload temperatures of 266 degrees F(130 degree C), due to dissipating heat affectively. The snakeskin liner is easily removed when applying the tape, to allow the self-fusing ethylene propylene rubber, high insulating voltage tape. Application. Use Scotch® Rubber Splicing Tape 23 for low or high voltage applications and joints up to 69 kV. This 0.76 mm thick, highly conformable, self-amalgamating EPR (Ethylene Propylene Rubber) based tape can be stretched up to 100% for void-free, moisture-resistant insulation. It ‘s non-vulcanising and shelf-stable with excellent electrical properties. Featuring a special polyester liner that will not stick when unwinding, this tape is ideal for moisture sealing electrical connections. Features and Benefits. Features a special polyester liner that will not stick when unwinding. Stretch up to 100% for void-free, moisture-resistant insulation. Non-vulcanising and shelf stable. Highly conformable, self-amalgamating EPR (Ethylene Propylene Rubber) based tape. Ideal for moisture sealing electrical connections. Black. FAQ's. Can wires with exposed cables be made safe with this tape?. Yes, the electrical tape is designed for this purpose, but would recomm***ed seek professional advice to deal with exposed wires.
Spec
- Quantity:1piece
- Backing Material : EPDM
- Width : 19mm
- Length : 9m
- Thickness : 0.76mm
- Colour : Black
- Adhesion Strength : Non-adhesive
- Tensile Strength : 14N/cm
- Maximum Operating Temperature : +90°C
- Minimum Operating Temperature : -18°C
- Model Number : Scotch® 23
- CODE No.:192-1605
