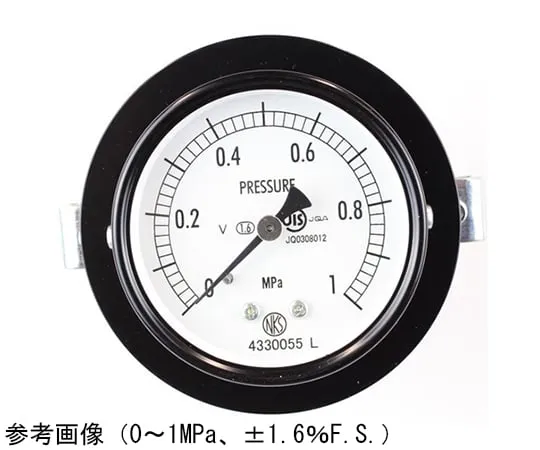

65-4271-05 Normal Pressure Gauge (Φ60) Embedded D Frame (Mounting Bracket) for Vibration Resistance 0.1 MPa AA15-121
Product Description
Product Model: 65-4271-05Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 65-4271-05
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is ***d in a wide range of fields.
Spec
- Size (mm): Φ60
- Shape (Mounting): Embedded D Frame (Mounting Bracket)
- Connections: G1/4B
- Material: Brass
- Performance: For Vibration Resistance
- Pressure Range: MPa_0~0.1
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
