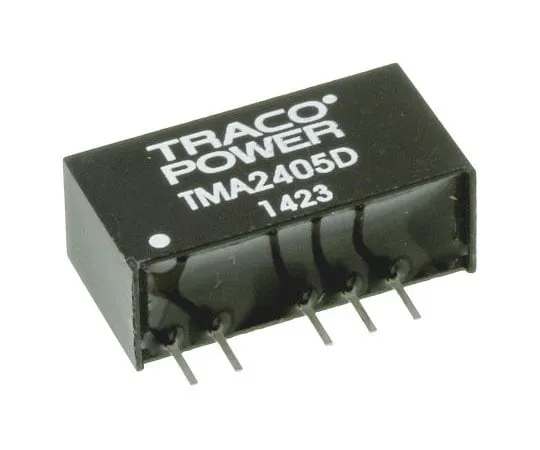

                                                            63-4721-55 TRACOPOWER TMA 1W Isolated DC-DC Converter Through Hole, Voltage in 21.6 → 26.4 V dc, Voltage out ±5V dc TMA 2405D
Product Description
Product Model: 63-4721-55Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-4721-55
Product Brand: TRACOPOWER
   Features

- 3. Traco 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - TMA Series. The Traco Power TMA series is a range of miniature isolated, 1 Watt, DC/DC converters in a SIP package. The SMD technology of these isolated converters makes it possible to offer a product with high performance at low cost. The TME DC-DC converters require only 1.2 cm2 board space and are the perfect solution for space critical applications for board level power distribution. Single-in-line (SIP) package Single and dual output models I/O isolation 1 ‘000 VDC High efficiency up to 81% Operating temperature range –40°C to +85°C Industry standard pinout 100% Burn-in (8 h) Lead free design, RoHS compliant
   Spec

- Quantity:1piece
- Output Voltage : ±5V dc
- Input Voltage Range : 21.6 → 26.4 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1000V dc
- Power Rating : 1W
- Output Current : ±100mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Efficiency : 72%
- Package : SIP 6
- Load Regulation : ±10%
- Maximum Temperature : +85°C
- Depth : 10.2mm
- CODE No.:191-5054
