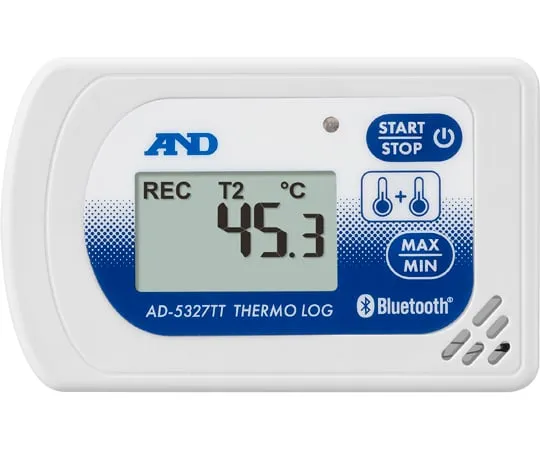

65-3904-50 BLE Temperature 2ch Data Logger with General (ISO) Calibration (Inspection Report + Tresability System Diagram) AD5327TT-00A00
Product Description
Product Model: 65-3904-50Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 65-3904-50
Product Brand: A&D
Features
- Comes with a certificate of general calibration.
- Data can be transmitted wirelessly to a smartphone. (Supported operating systems: iPhone, iPad, and iPod Touch with iOS 11.0 or later)
- Temperature data logger with built-in Bluetooth (Bluetooth 4.0). Two channels: built-in temperature sensor and external temperature sensor. *External temperature sensor sold separately
- The number of data recorded is 24000 data for internal temperature and external temperature.
- The dedicated iOS application "Thermo Log" can send recorded data to smartphones and other devices. Recording data can be transmitted without stopping the recording operation even during recording.
- The range is up to 10 meters in line-of-sight distance. *Shortening occurs when there are obstacles or the surrounding environment (such as temperature or electromagnetic environment).
- Multiple data loggers can be connected to a single smartphone. (Within the range of communication)
- Recorded data can be sent to a computer or the cloud using the function of a smartphone.
- The data output format can be selected from CSV format and PDF format.
- With alarm function (red LED is lit), you can select from single alarm, cumulative alarm, or no alarm. *There is no buzzer.
Spec
- Display/Measurement item: Temperature 2 channel: T1 (built-in temperature sensor), T2 (external temperature sensor) * T2 external temperature sensor probe is sold separately.
- Temperature measurement range: T1, T2: -30.0~70.0°C
- Temperature resolution: 0.1°C
- Temperature measurement accuracy: ±0.5°C
- Body measurement interval: 5 second interval
- Waterproof performance: IP65 (when T2 external temperature sensor probe is connected)
- Number of data records: Temperature T1:24000 points, Temperature T2:24000 points
- Recording interval: 10 seconds to 2 hours, can be set in 10 second increments
- Power/Battery Life: 1 CR2 Lithium Battery/Approx. 3 Months (Ambient temperature 25°C, recording interval 1 minute, no alarm operation)
- External dimensions/mass: 80 (W) x 50 (H) x 23 (D) mm, excluding protrusions/approx. 67 g (including battery)
- Accessories: Owner's Manual, Battery for Monitor, General Calibration Certificate
- *External temperature sensor probe is not included. Buy a separately sold external temperature sensor probe (AX-KO6692 or AX-KO6693) depending on your application.
- *The client name and address on the certificate will be blank.
- *The delivery time will be around 2 weeks because we will proofread your order after it is confirmed. (However, please note that it takes additional days for the New Year's holiday and the New Year holiday.)
- *As this is a made-to-order product, we cannot accept cancellations, returns or returns after ordering.
