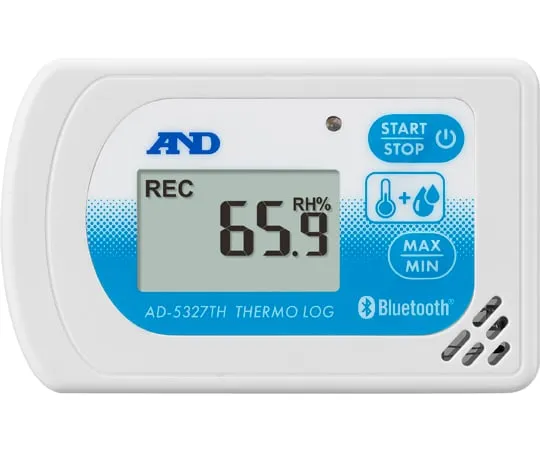

65-3904-49 BLE Temperature and Humidity Data Logger with General (ISO) Calibration (Inspection Report + Tresability System Diagram) AD5327TH-00A00
Product Description
Product Model: 65-3904-49Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 65-3904-49
Product Brand: A&D
Features
- Comes with a certificate of general calibration.
- Data can be transmitted wirelessly to a smartphone. (Supported operating systems: iPhone, iPad, and iPod Touch with iOS 11.0 or later)
- Temperature and humidity data logger with built-in Bluetooth (Bluetooth 4.0).
- The number of data recorded is 24000 data for internal temperature and internal humidity.
- The dedicated iOS application "Thermo Log" can send recorded data to smartphones and other devices. Recording data can be transmitted without stopping the recording operation even during recording.
- The range is up to 10 meters in line-of-sight distance. *Shortening occurs when there are obstacles or the surrounding environment (such as temperature or electromagnetic environment).
- Multiple data loggers can be connected to a single smartphone. (Within the range of communication)
- Recorded data can be sent to a computer or the cloud using the function of a smartphone.
- The data output format can be selected from CSV format and PDF format.
- With alarm function (red LED is lit), you can select from single alarm, cumulative alarm, or no alarm. *There is no buzzer.
Spec
- Display/Measurement items: Temperature T1 (built-in temperature sensor), Humidity RH (built-in humidity sensor)
- Temperature measurement range: -30.0~70.0°C
- Temperature resolution: 0.1°C
- Humidity measurement range: 10.0~90.0%RH
- Humidity resolution: 0.1%RH
- Temperature measurement accuracy: ±0.5°C
- Humidity measurement accuracy: ±3%RH (10.0~79.9%RH), ±5%RH (80.0~90.0%RH) at 25°C
- Body measurement interval: 5 second interval
- Number of data records: Temperature T1:24000 points, Humidity RH: 24000 points
- Recording interval: 10 seconds to 2 hours, can be set in 10 second increments
- Power/Battery Life: 1 CR2 Lithium Battery/Approx. 3 Months (Ambient temperature 25°C, recording interval 1 minute, no alarm operation)
- External dimensions/mass: 80 (W) x 50 (H) x 23 (D) mm, excluding protrusions/approx. 67 g (including battery)
- Accessories: Owner's Manual, Battery for Monitor, General Calibration Certificate
- *The client name and address on the certificate will be blank.
- *The delivery time will be around 2 weeks because we will proofread your order after it is confirmed. (However, please note that it takes additional days for the New Year's holiday and the New Year holiday.)
- *As this is a made-to-order product, we cannot accept cancellations, returns or returns after ordering.
