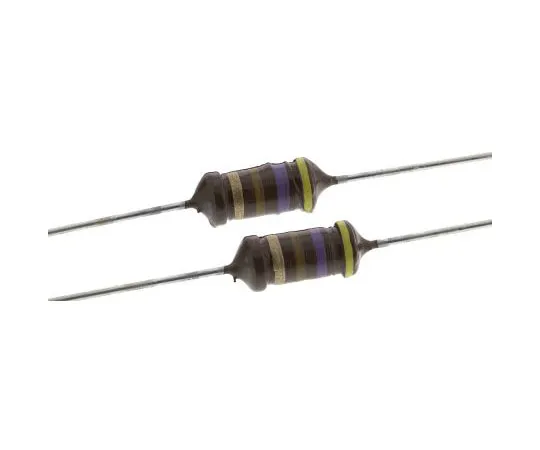

63-4721-30 EPCOS 470 μH ±5% Ferrite Leaded Inductor, Max SRF:1.5MHz, Q:40, 280mA Idc, 2.5Ω Rdc LBC B82144A2474J000
Product Description
Product Model: 63-4721-30Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4721-30
Product Brand: EPCOS
Features
- Epcos B82144A LBC Series Axial Inductors. Epcos B82144A LBC series RF chokes are suitable for *** in telecommunications (12- or16-kHZ blocking filter), automotive electronics, energy saving lamps and entertainment electronics. They can also be ***d for RF blocking and filtering and decoupling and interference suppression. These inductors consist of a large ferrite drum core with enamel copper wire winding and a flame retardant lacquer coating. High rated current Suitable for wave soldering Very wide inductance range Terminals are electroplated with nickel and pure tin Inductance indicated by colour bands in accordance with IEC 62 (μH)
Spec
- Quantity：1bag(5pieces)
- Inductance : 470 μH
- Maximum DC Current : 280mA
- Mounting Type : Axial
- Maximum DC Resistance : 2.5Ω
- Tolerance : ±5%
- Diameter : 5.2mm
- Length : 14.8mm
- Dimensions : 5.2 (Dia.) x 14.8mm
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 1.5MHz
- Series : LBC
- Minimum Quality Factor : 40
- CODE No.:191-1169
